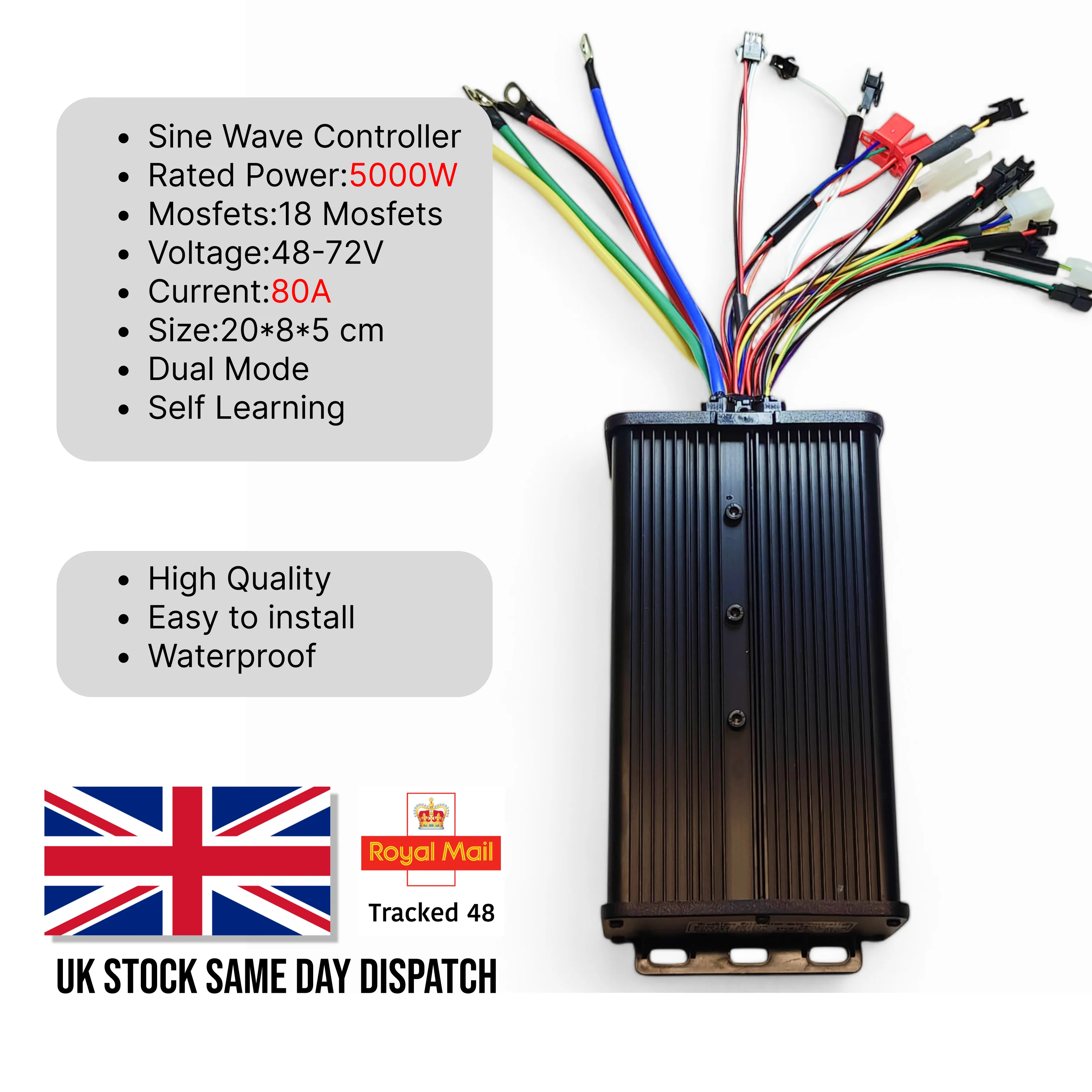

Ebike Controller 48-72V 80A Sine Wave Controller UKC1 Color LCD Bundle Kit

Ebike Controller 48-72V 80A Sine Wave Controller UKC1 Color LCD Bundle Kit

Features:

• Speed Limit ( will limit the speed to around 15.5 mph)
• Fast self-learning mode: quickly match all kinds of motors

• Smart Controller (can be used with any batteries)
  from 48v(13s) Less Speed
  up to 72V (20s) More Speed

Specifications:

• Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
• Controller Type:
• Sine Wave (default)
• Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
• Rated Voltage: DC 48-72V
• Power Output:
• 48V- 3800W
• 52V-4100W
• 60V-4820W
• 72V-5700W


• Motor Compatibility: 3000W
• Maximum Current: 80±1A
• Rated Current: 40A
• MOSFETs: 18 high-efficiency MOSFETs

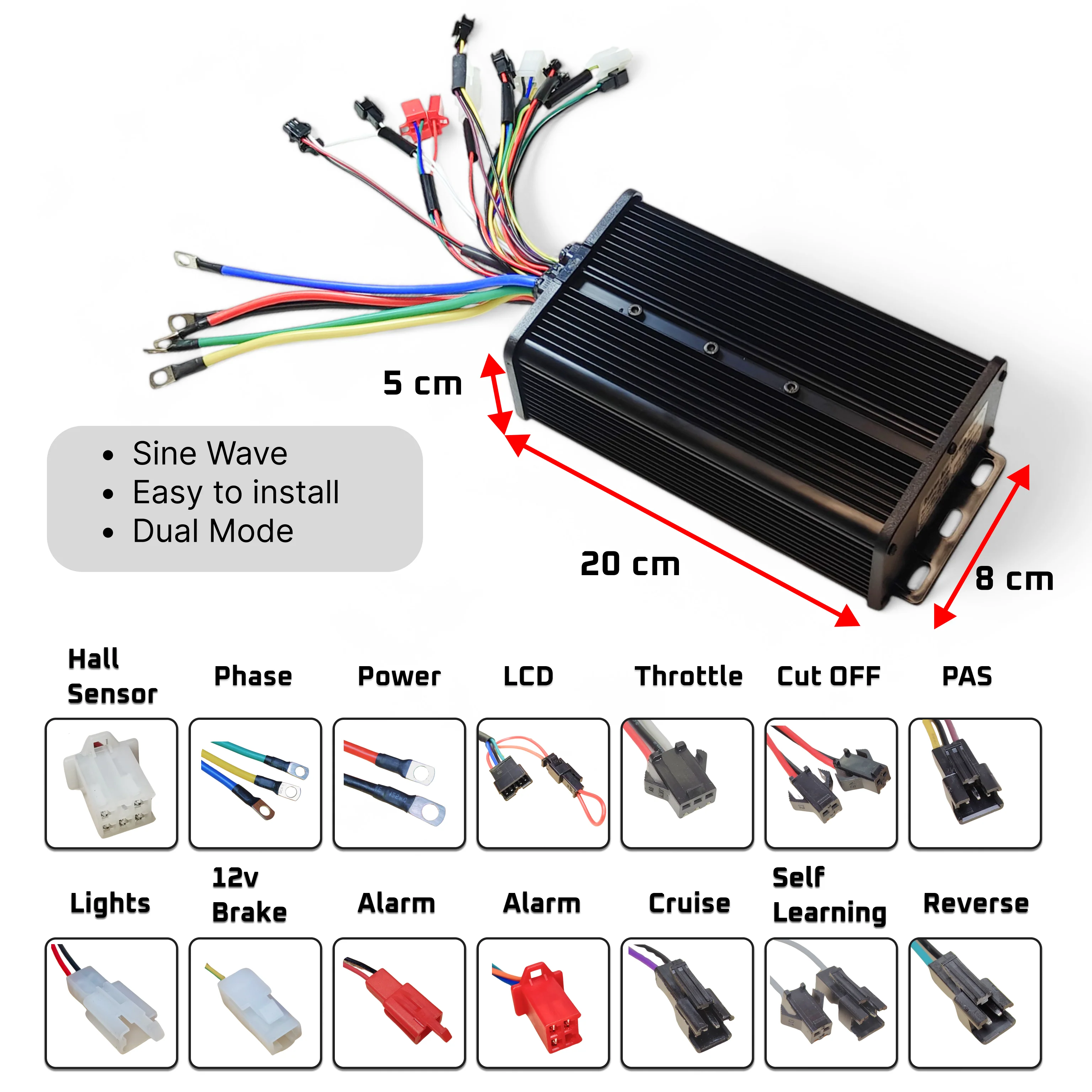

• Size:22x11x5cm
• Weight: 850g approx
• Cable Length: 13–18 cm
• Battery Plug:  Rings
• Motor Phase Plug: Rings

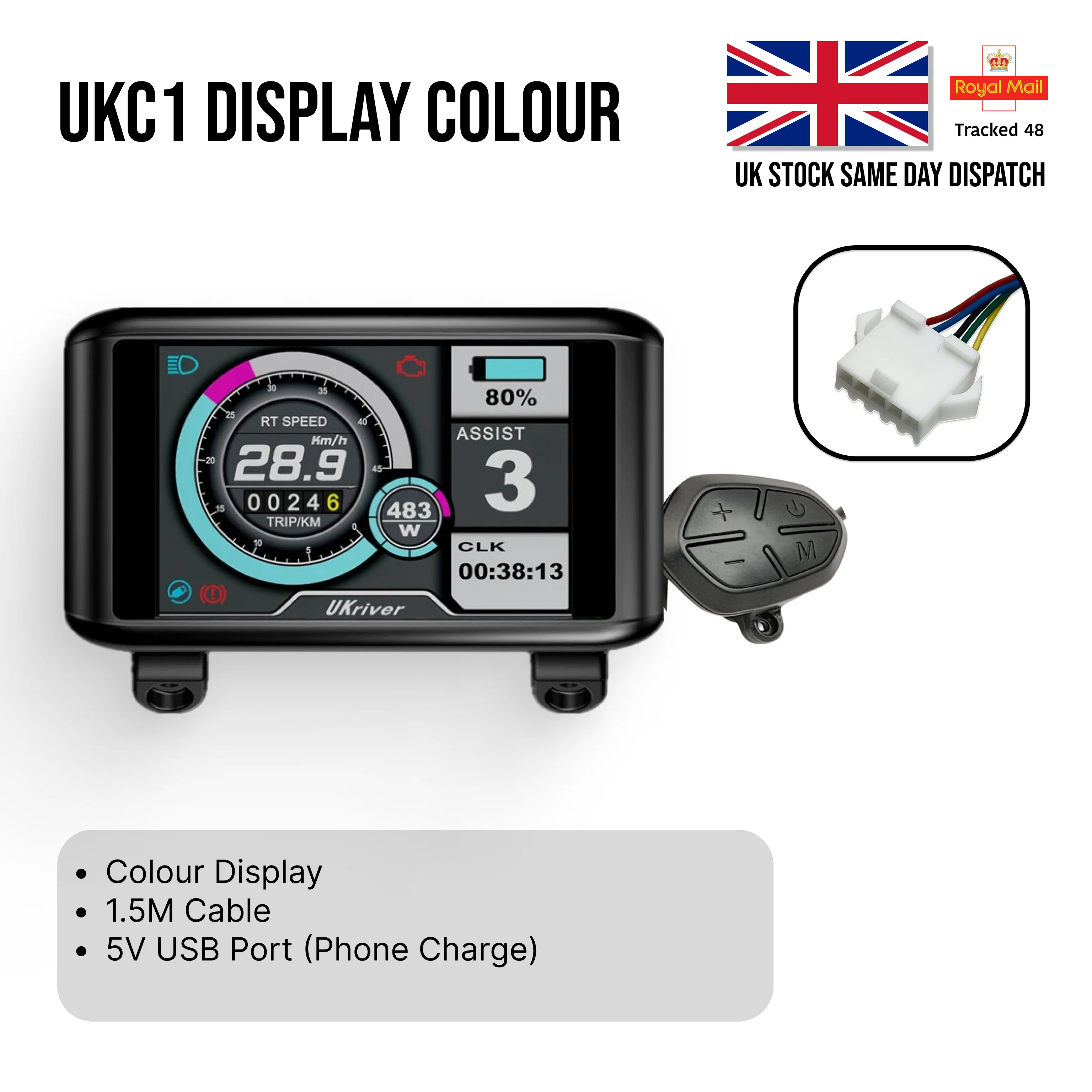

UKC1 Specifications:

• LCD display can clearly show the state and data, such as riding speed, time, temperature.
• 5V USB Port For charging phone and lights
• Backlight enables you to see screen clearly in dim environment.
• It is suitable for electric bicycles controllers.
• Compatible with 24V,36V,48V,52V,60V,72V.
• It’s also compatible with many types of BRUSHLESS controllers.
• This is a YF/MQ Controllers on protocol No2, NOT FOR KT controllers

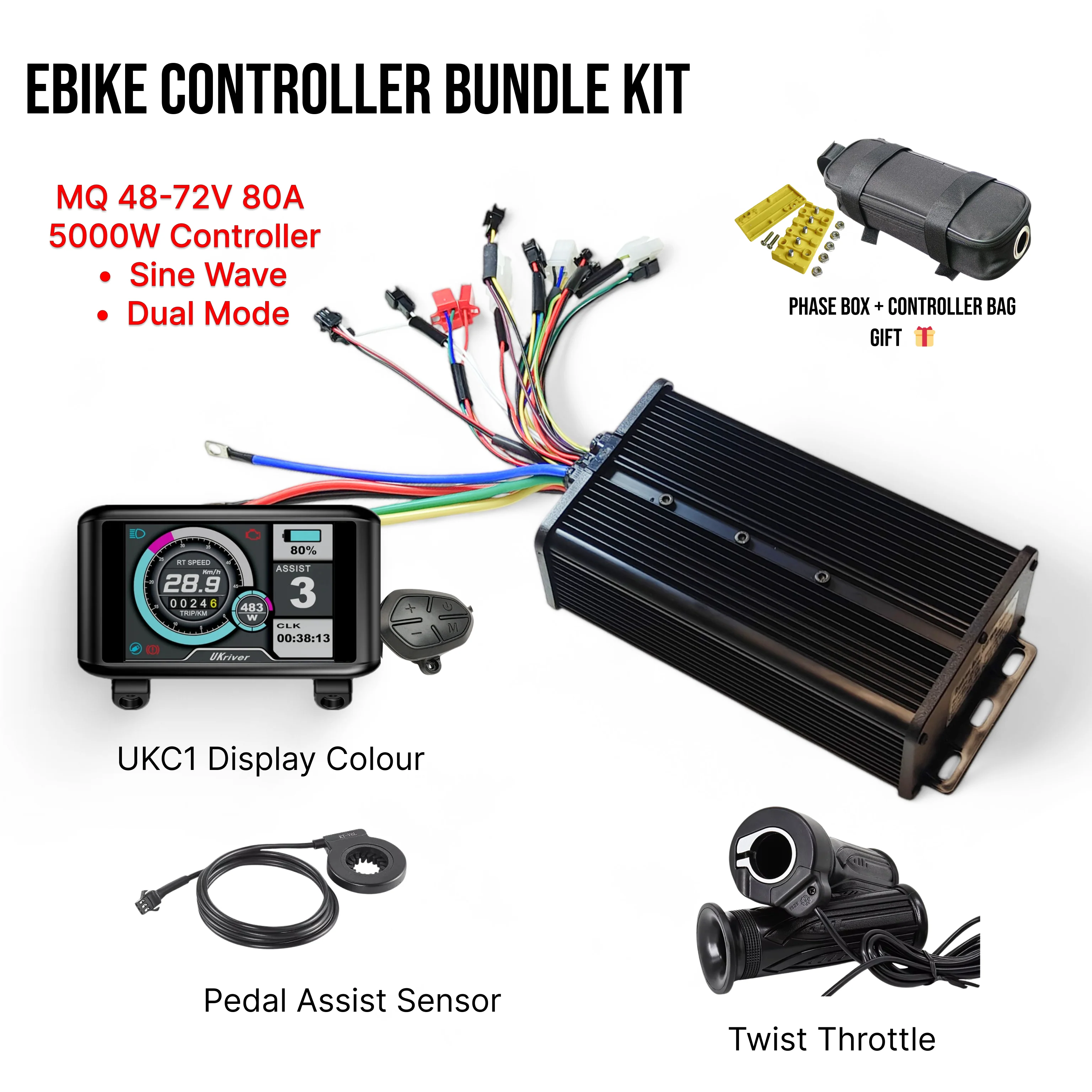

Package Included

• 1x  48-72V 80A MQ Controller
• 1x UKC1 Colour Display
• 1x Twist Throttle
• 1x Pedal Assist Sensor
