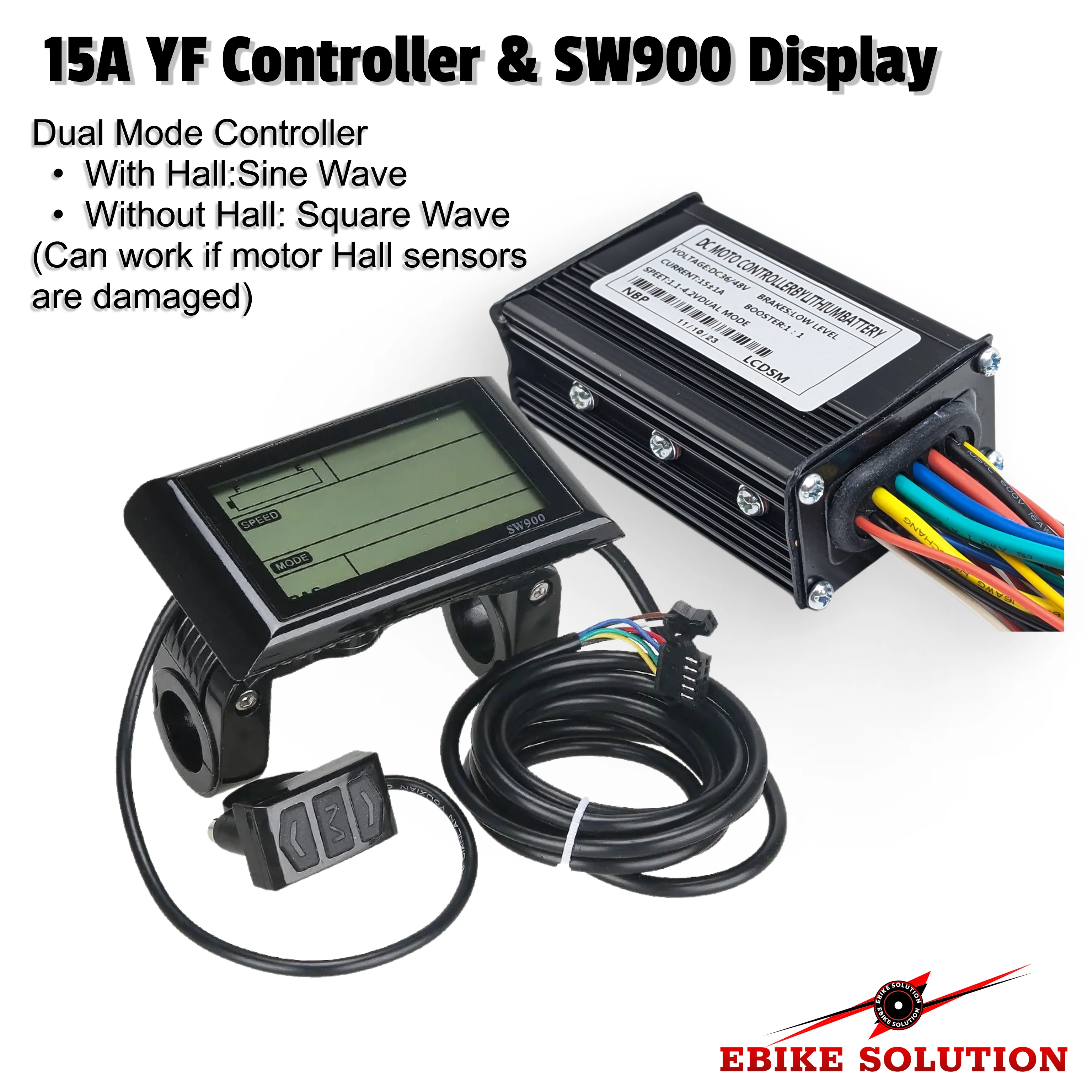

Ebike Controller Sine Wave 36/48V YF 15A + SW900 Display 500W Kit Dual Mode

YF Ebike Controller Dual Mode 36/48V 15A Sine Wave

Features:

• Speed Limit ( will limit the speed to around 15.5 mph)
• Fast self-learning mode: quickly match all kinds of motors
• Smart Controller (can be used with any batteries/voltage adjusts based on the battery and can't be changed)
  from 36v(10s) Less Speed
  up to 48V (13s) More Speed

Specifications:

• Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
• Controller Type:
• Sine Wave (default)
• Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
• Rated Voltage: DC 36-48V
• Power Output:
• 36V- 500W
• 48V 720W

• Motor Compatibility: 250-500W
• Maximum Current: 15±1A
• Rated Current: 7A
• MOSFETs: 6high-efficiency MOSFETs

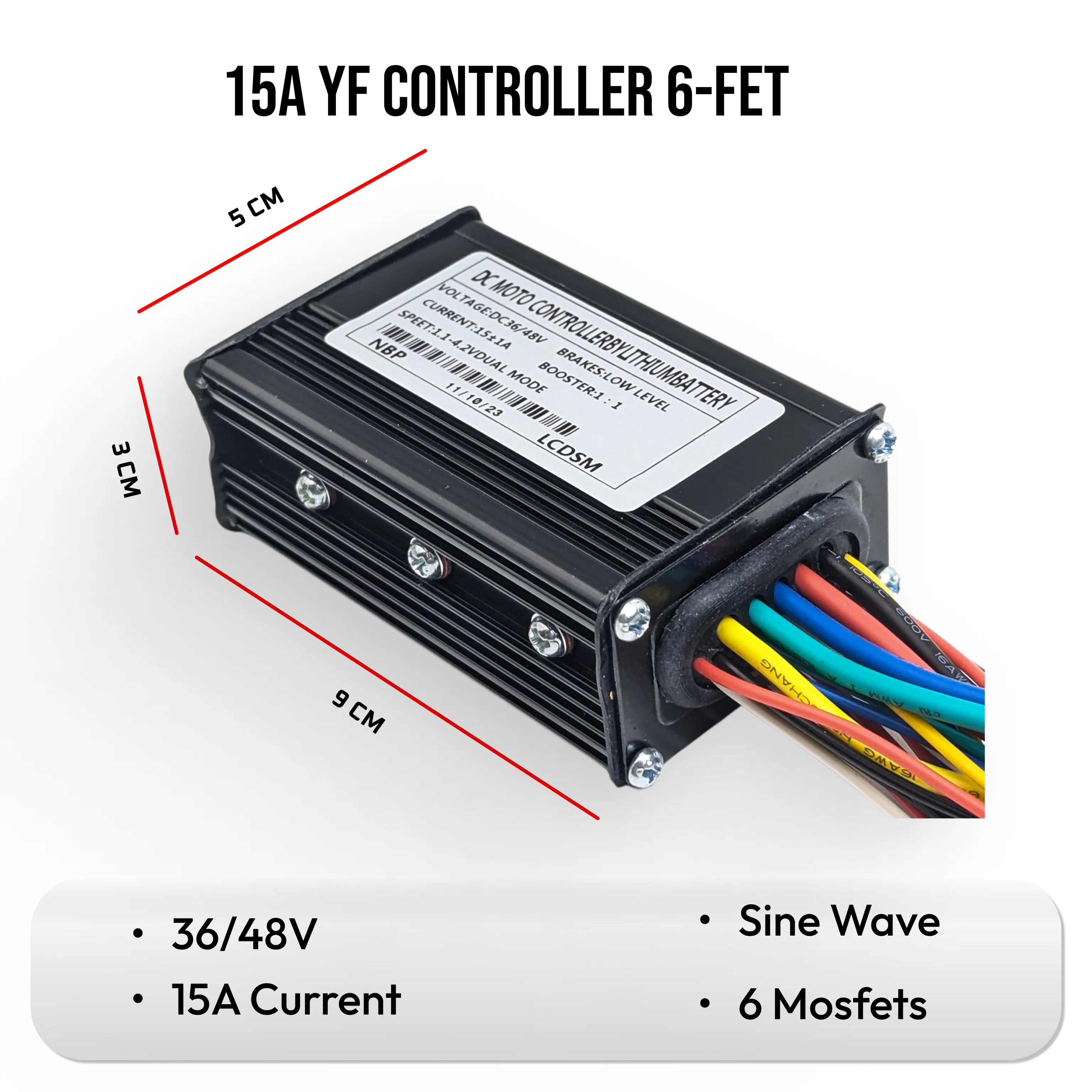

• Size:9x3x3cm
• Weight:350g approx

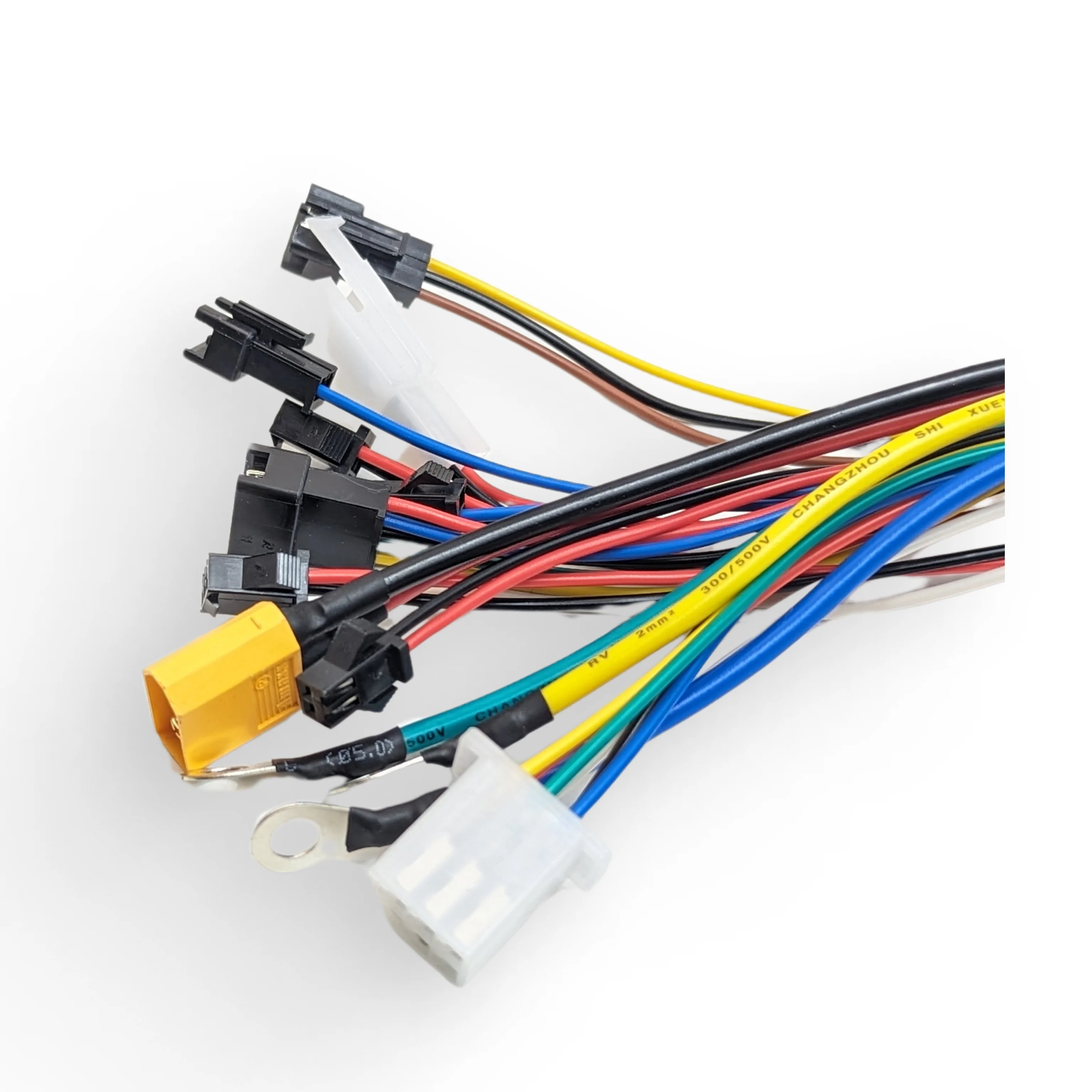

• Cable Length: 13–18 cm

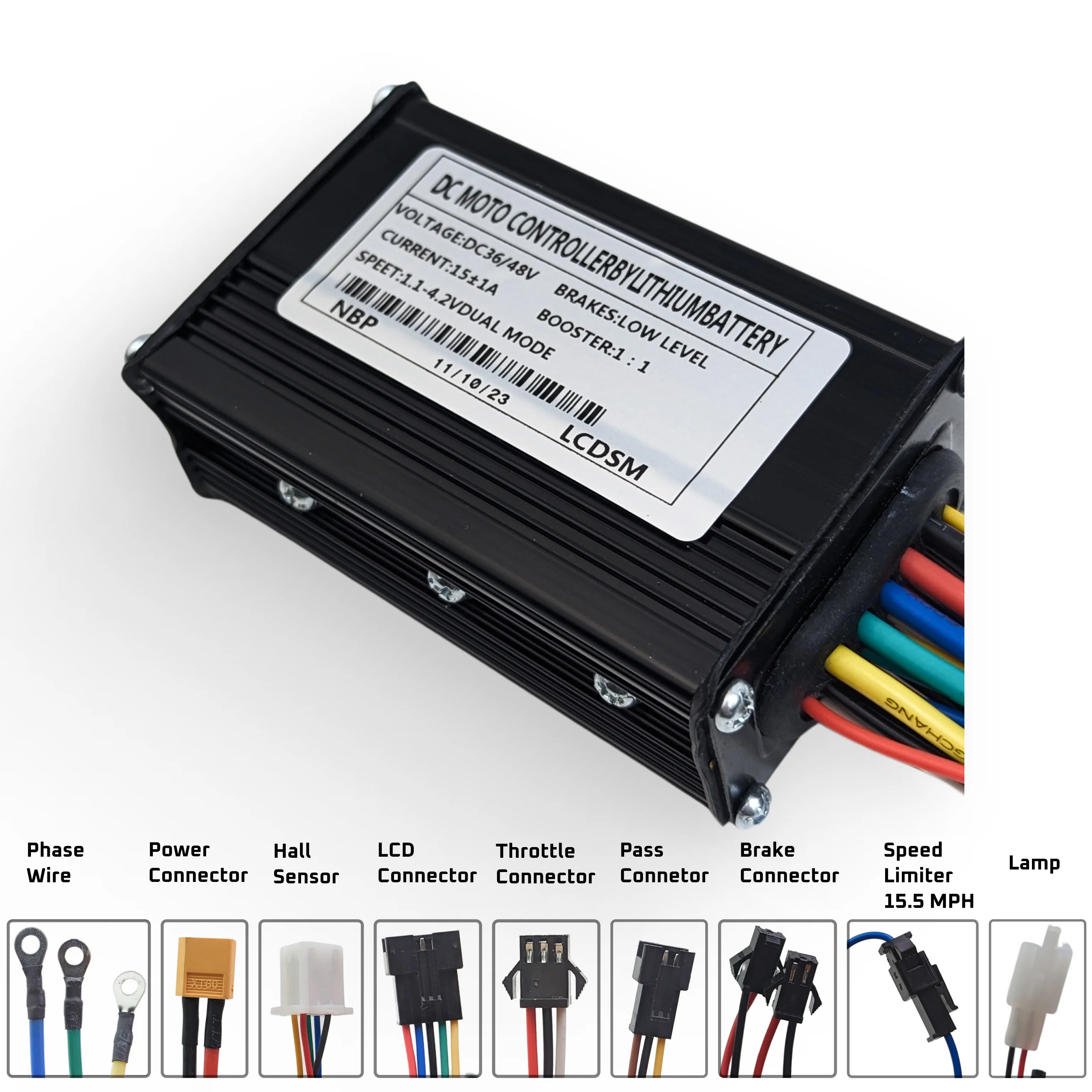

• Battery Plug:  XT60
• Motor Phase Plug: Rings

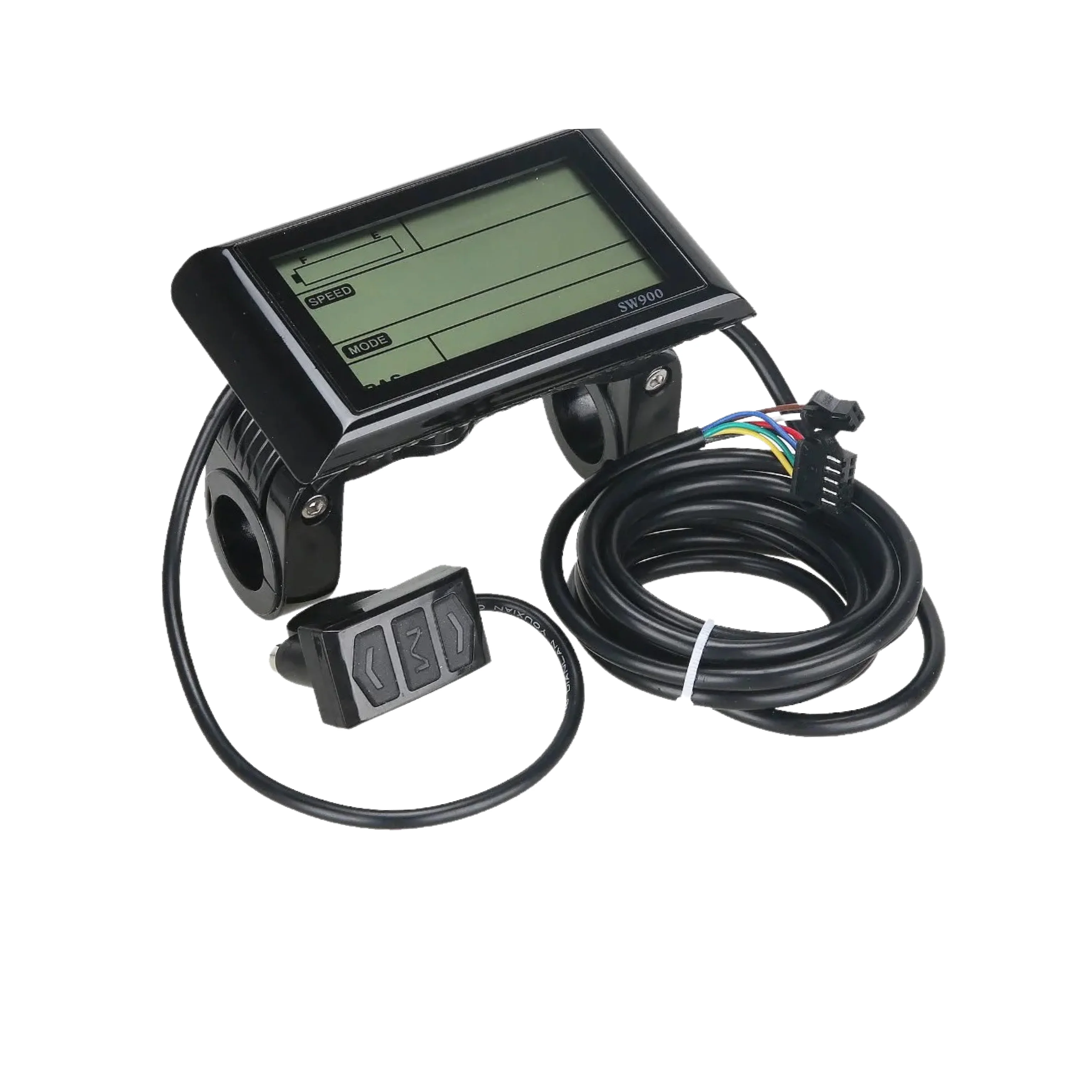

SW900 Specifications:

• LCD display can clearly show the state and data, such as riding speed, time, temperature.
• 5V USB Port For charging phone and lights
• Backlight enables you to see screen clearly in dim environment.
• It is suitable for electric bicycles controllers.
• Compatible with 24V,36V,48V,52V,60V,72V.
• It’s also compatible with many types of BRUSHLESS controllers.
• This is a YF/MQ Controllers on protocol No2, NOT FOR KT controllers

Package Include:

• 1 X YF 15A Sine Wave Controller
• SW900 Display
