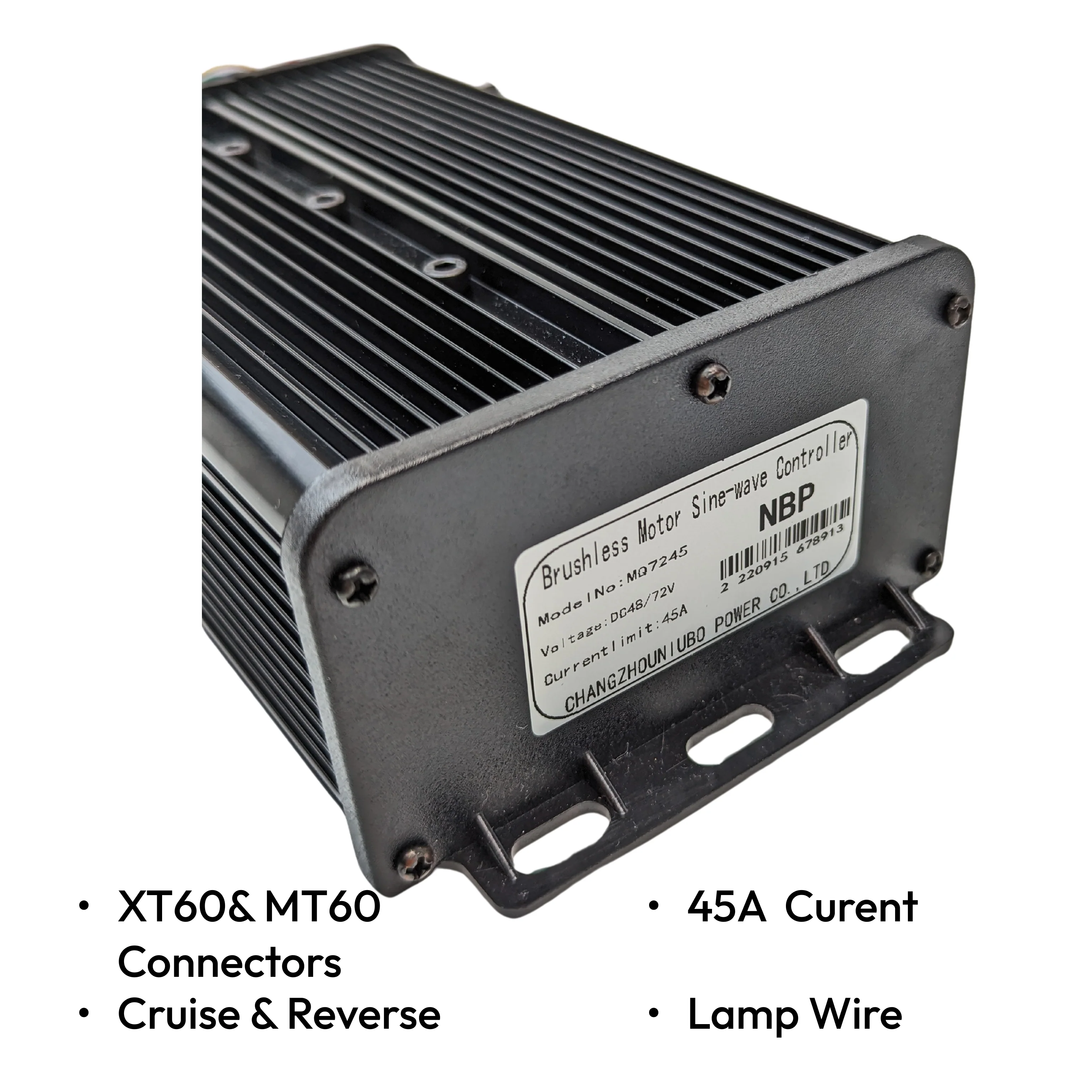

Ebike Brushless Motor Controller MQ 48-72V 45A Sine Wave Dual Mode

Ebike Brushless Motor Controller MQ 48-72V 45A Sine Wave Dual Mode

Features:

• Speed Limit ( will limit the speed to around 15.5 mph)
• Fast self-learning mode: quickly match all kinds of motors

• Smart Controller (can be used with any batteries)
  from 48v(13s) Less Speed
  up to 72V (20s) More Speed
• Once the remote is switched on, the throttle is disabled and the speed limiter is activated, restricting the bike to approximately 15 mph. A 6–8 magnet PAS sensor is required for correct operation. When the remote is switched off, full power is restored.

Specifications:

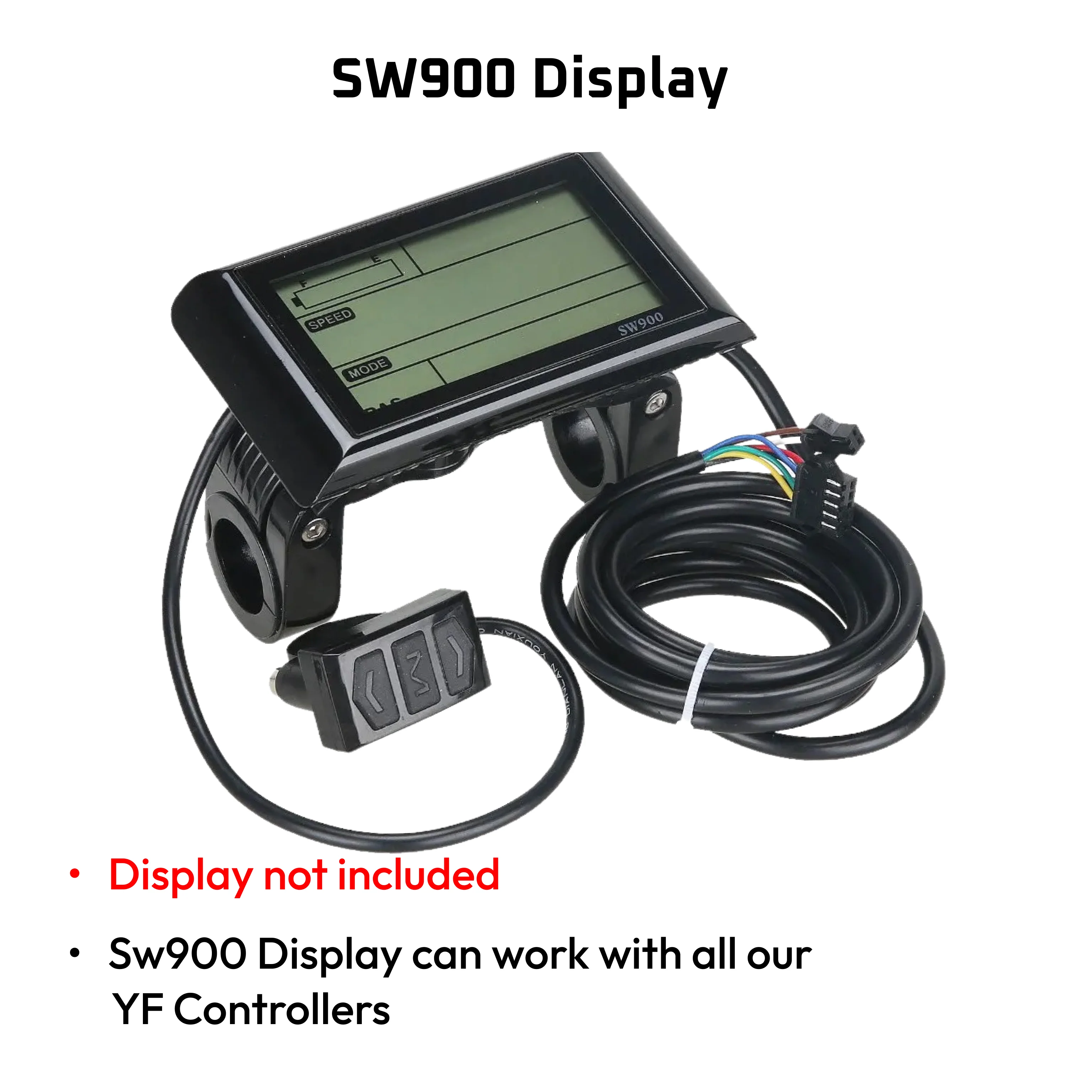

• Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
• Controller Type:
• Sine Wave (default)
• Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
• Rated Voltage: DC 48-72V
• Power Output:
• 48V- 2160W
• 52V-2340W
• 60V-2700W
• 72V-3240W


• Motor Compatibility: 2000W
• Maximum Current: 45±1A
• Rated Current: 22A
• MOSFETs: 18 high-efficiency MOSFETs
• Size:18x11x5cm
• Weight: 850g approx
• Cable Length: 13–18 cm
• Battery Plug:  XT60
• Motor Phase Plug: MT60

Package Included

• 1 X MQ 45A Sine Wave Controller
