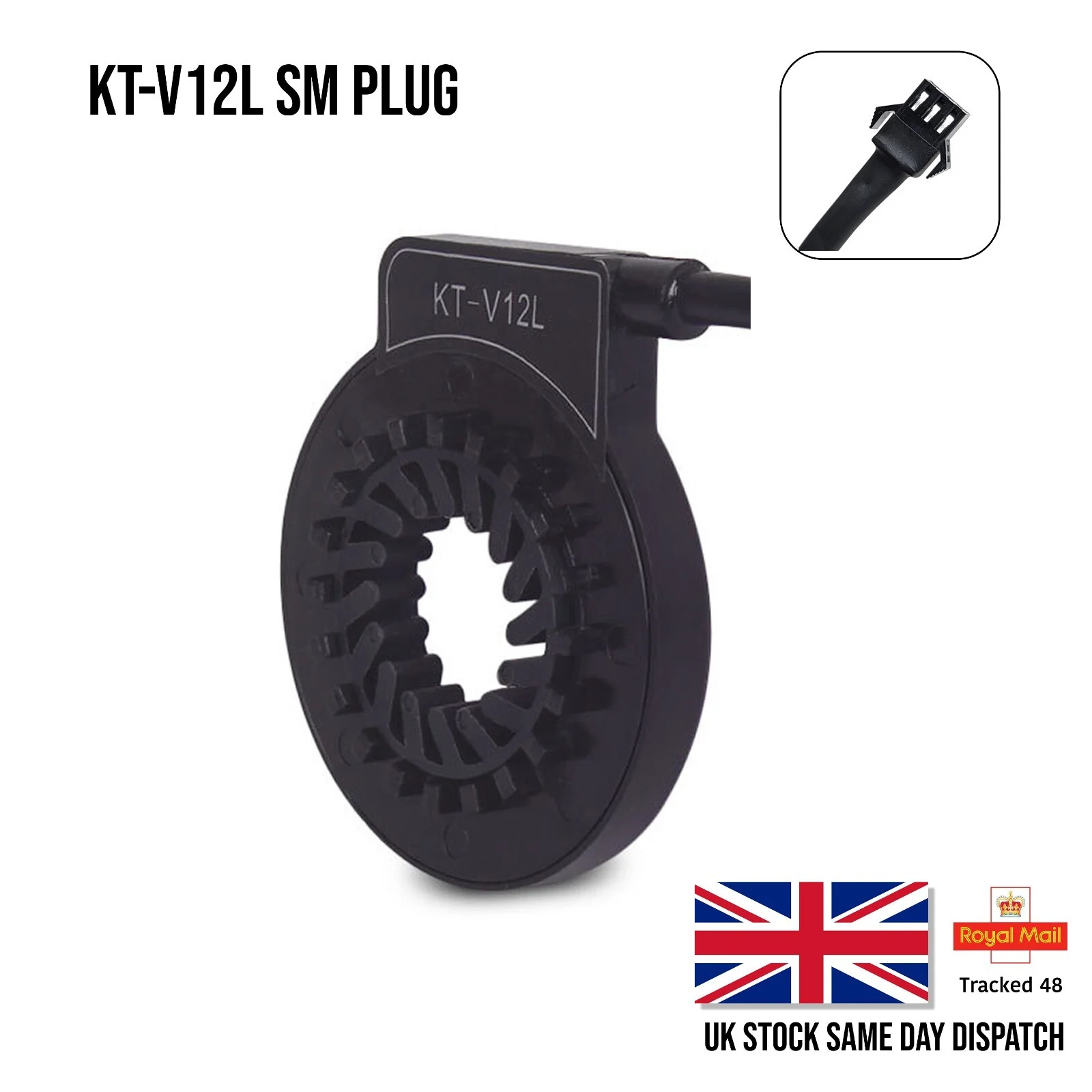

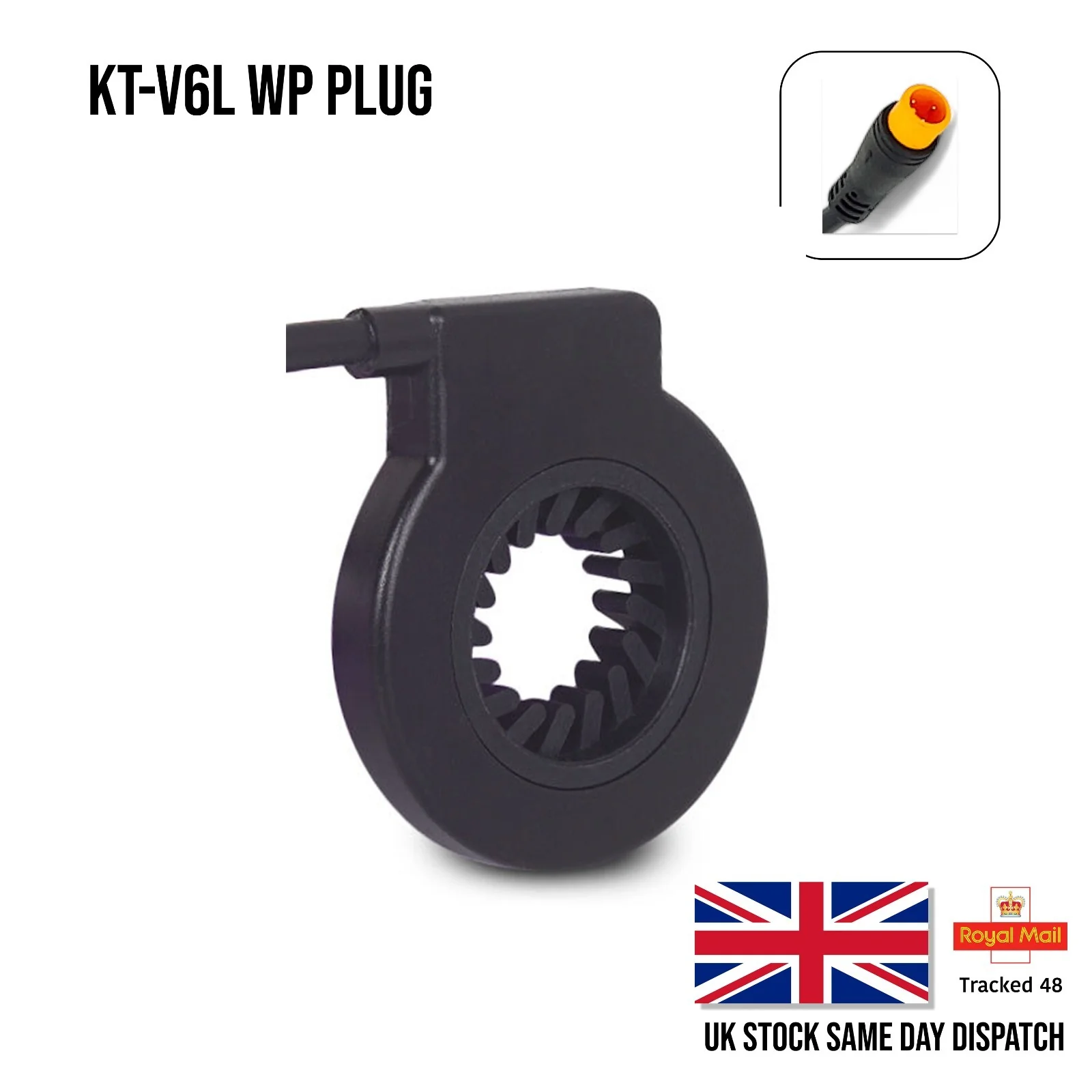

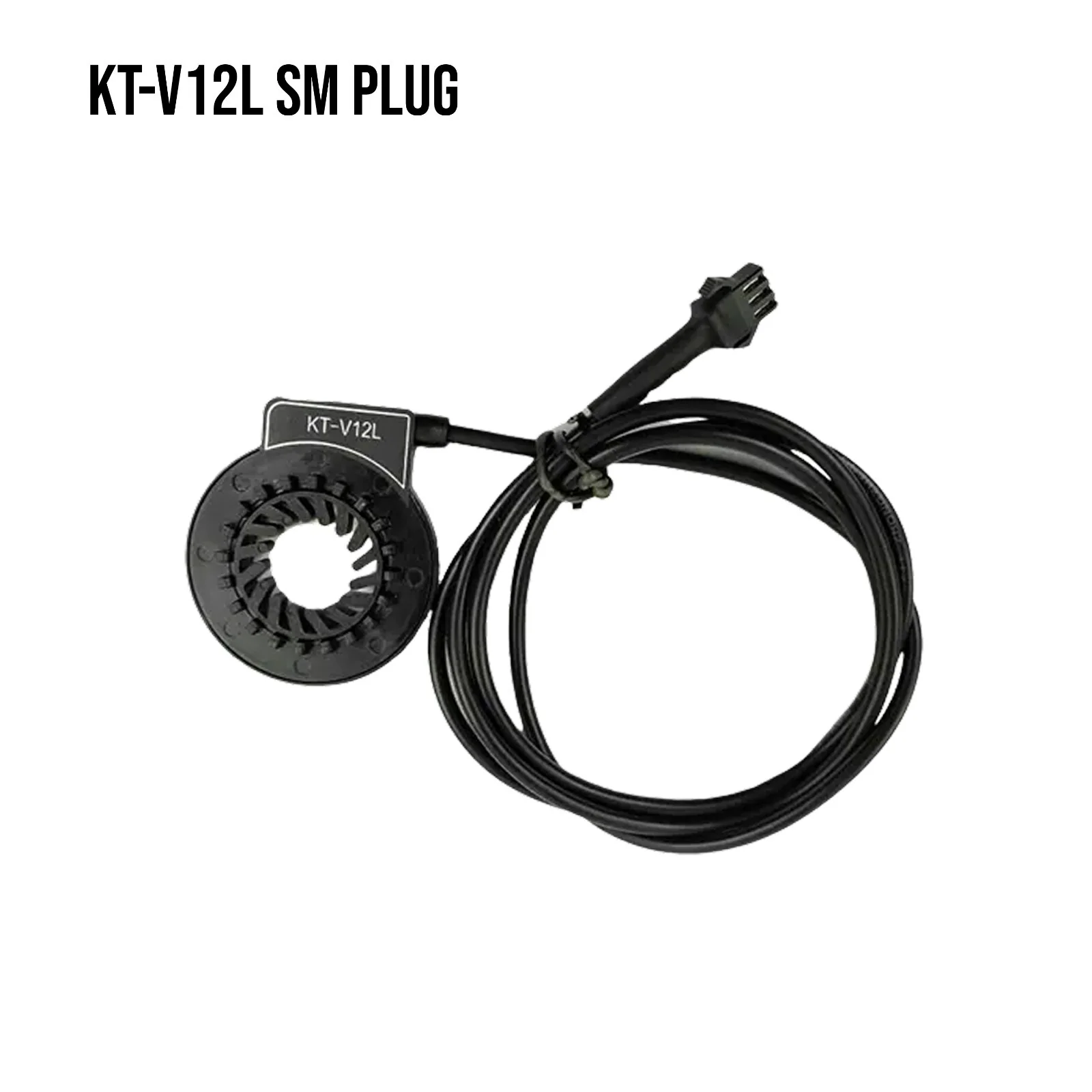

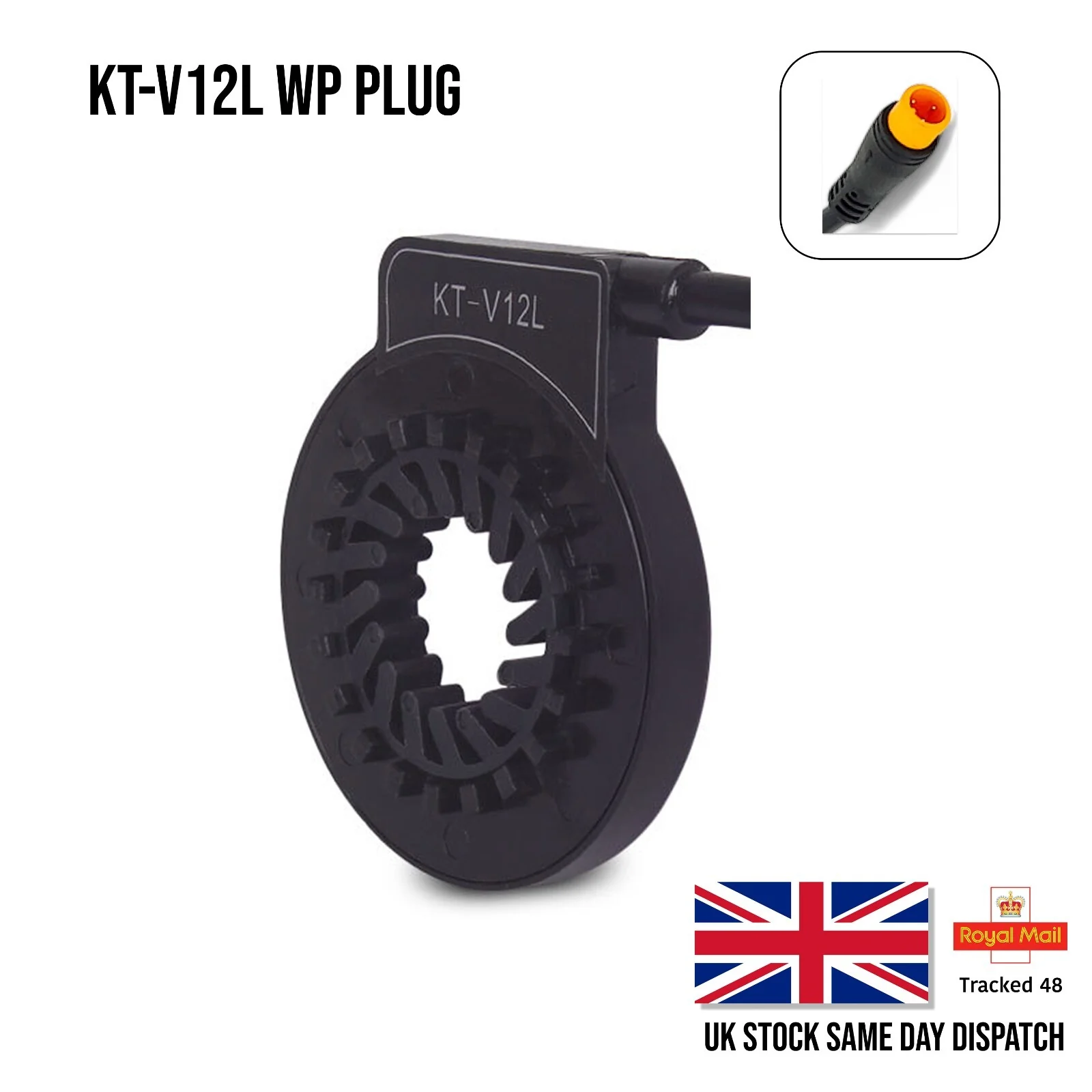

Electric Bicycle Pedal KT-V6L/KT-V12L Dual Hall Assist Sensor Female Plug Sensor

Electric Bicycle Pedal KT-V6L/KT-V12L Dual Hall Assist Sensor Female Plug Sensor

Specification

• Use the integration structure design of dual hall detection elements and the built-in disk, and it is unique, novel with beautiful appearance;

• Compared with the traditional separation sensor, it can realize the concentric motion of disk and magnetic induction element, which is with high sensitivity and stable signal;

• Output 6/12 signals with fast power-assist response speed, and it can automatically identify the positive rotation and the reverse rotation of the pedal;

• The installation and disassembly are convenient and quick.

• Standard interface: SM/Waterproof plug

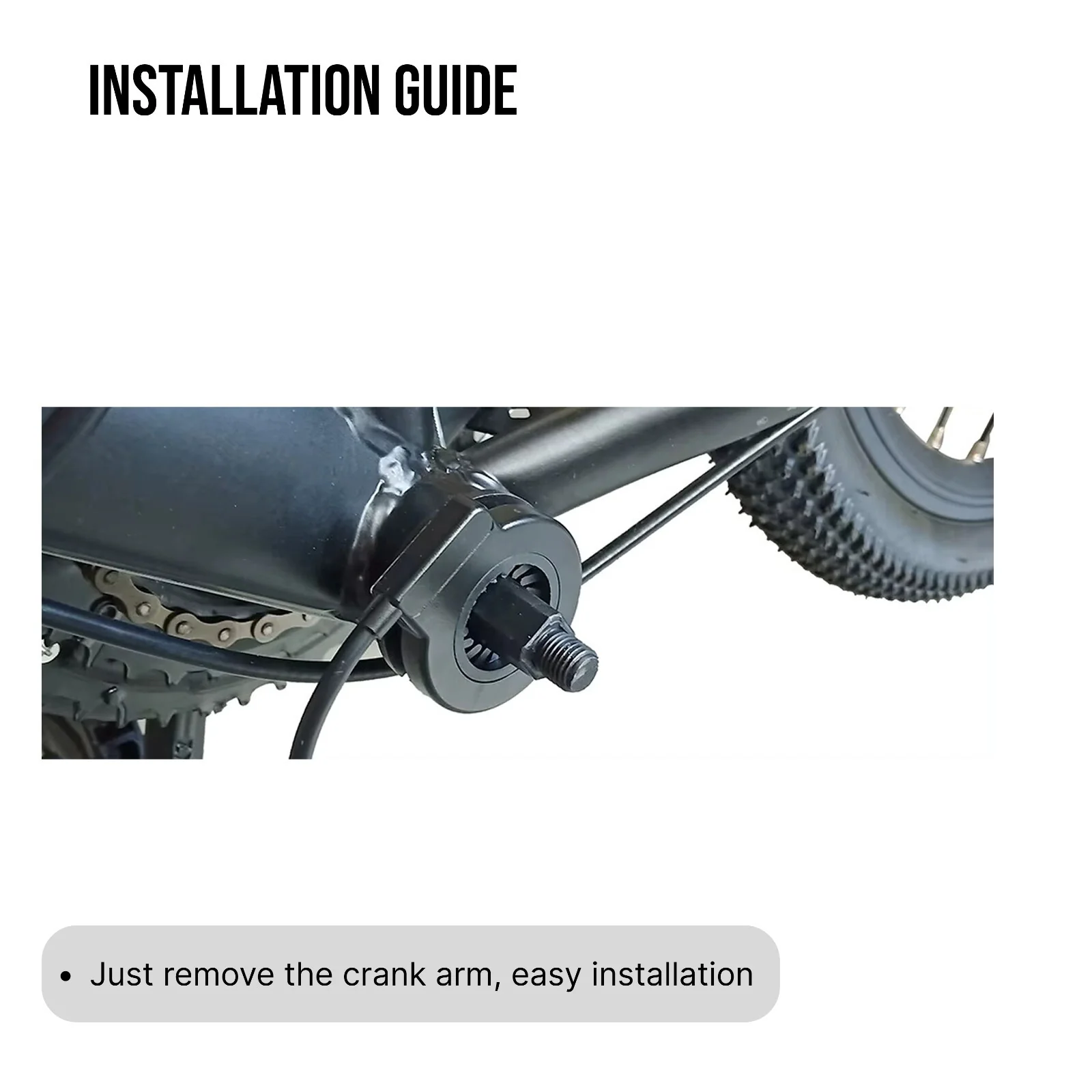

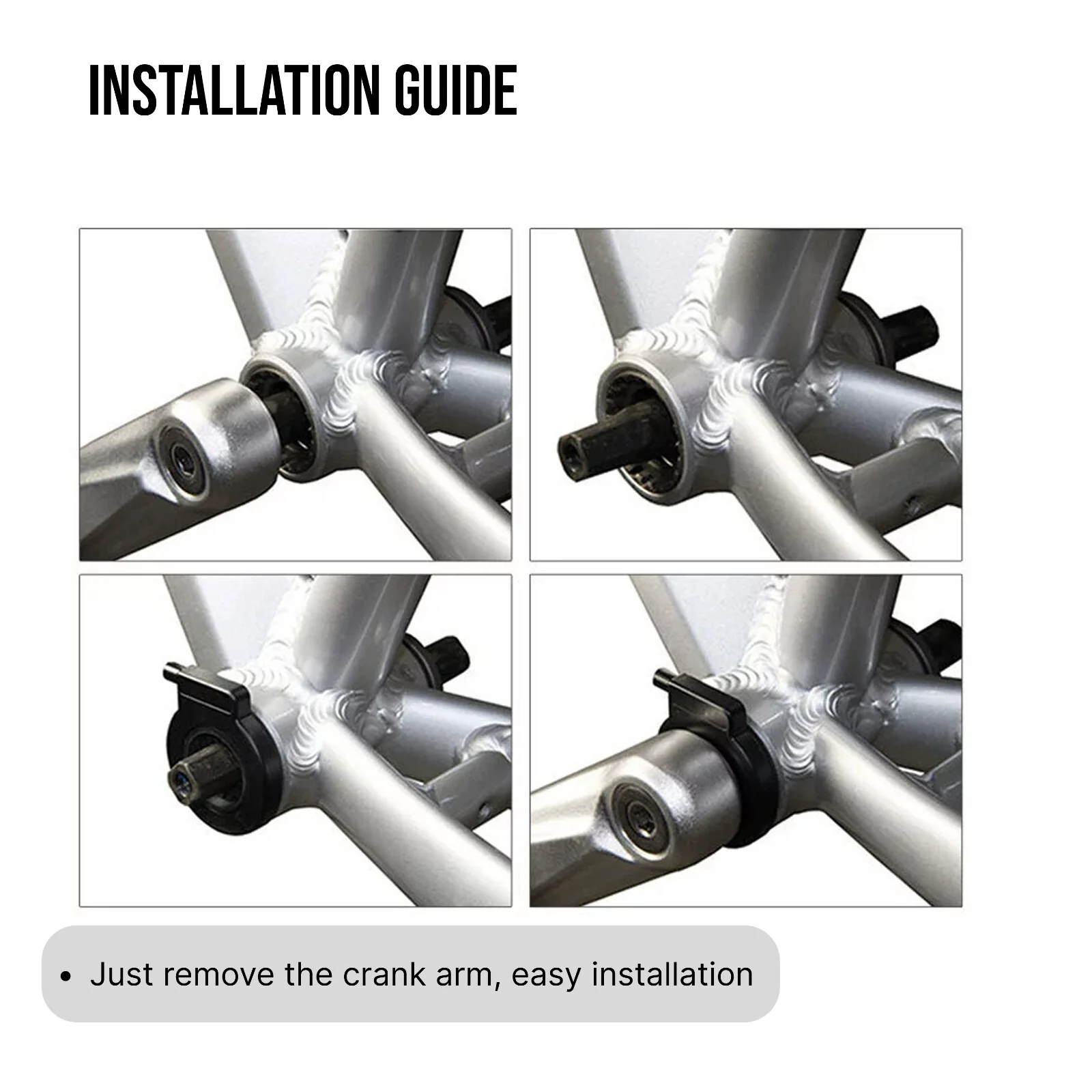

• KT-V6L / KT-v12L Dual Hall assist sensor uses the left installation mode, during the installation, it’s simply needed to remove the left crank, and install the sensor in an electric bicycle axis according to the diagram, then install the crank back into place to complete the sensor installation.

• Applicable voltage: Suitable for most electric bicycles and scooters, suitable for 36V/48V voltage

• Cable length: Around 80CM/31.49INCH(WP/SM)

• Number of Magnets:6 Magnets;12 Signals

Package Included:

• 1 x Pedal Assist Sensor
