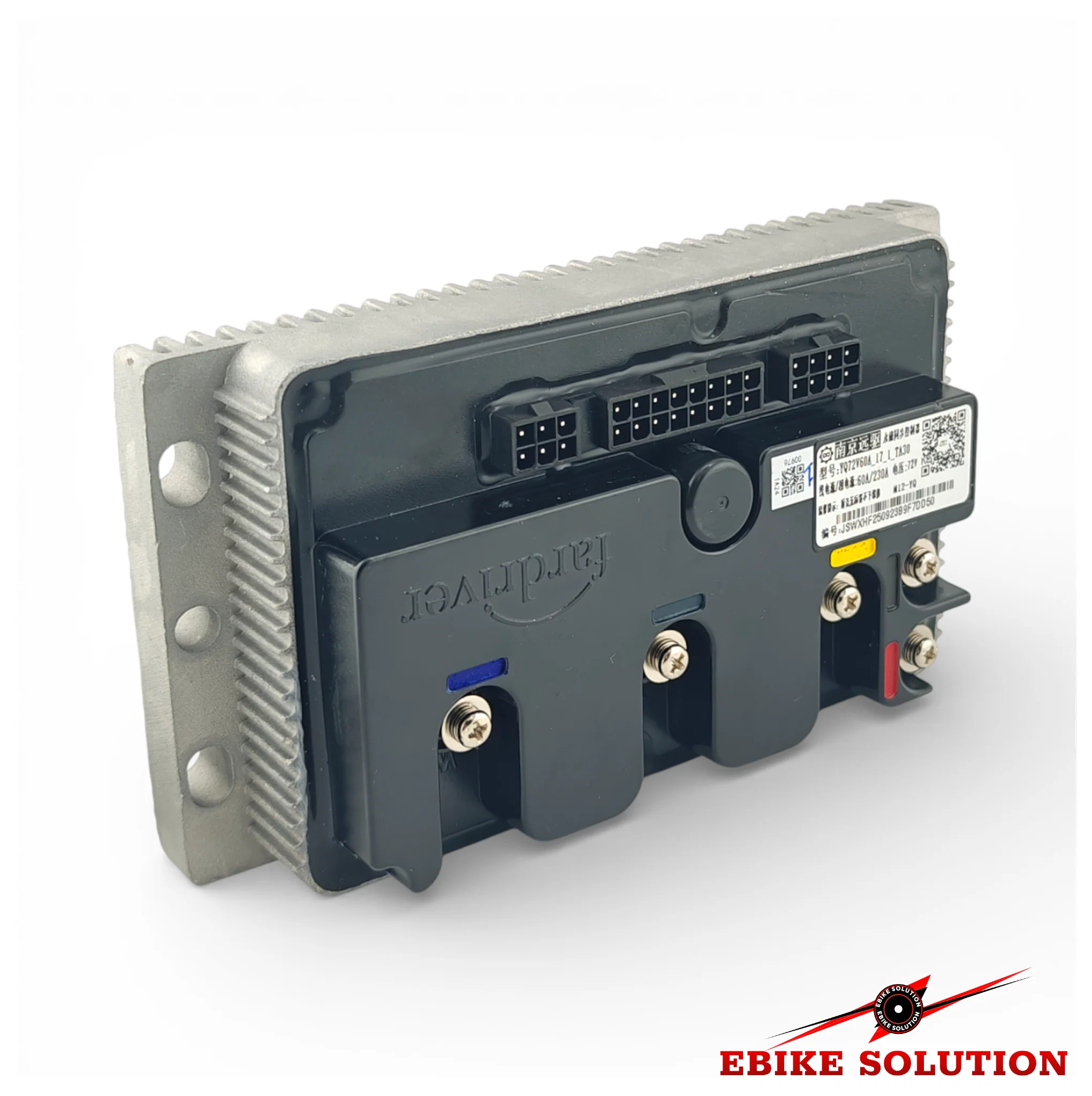

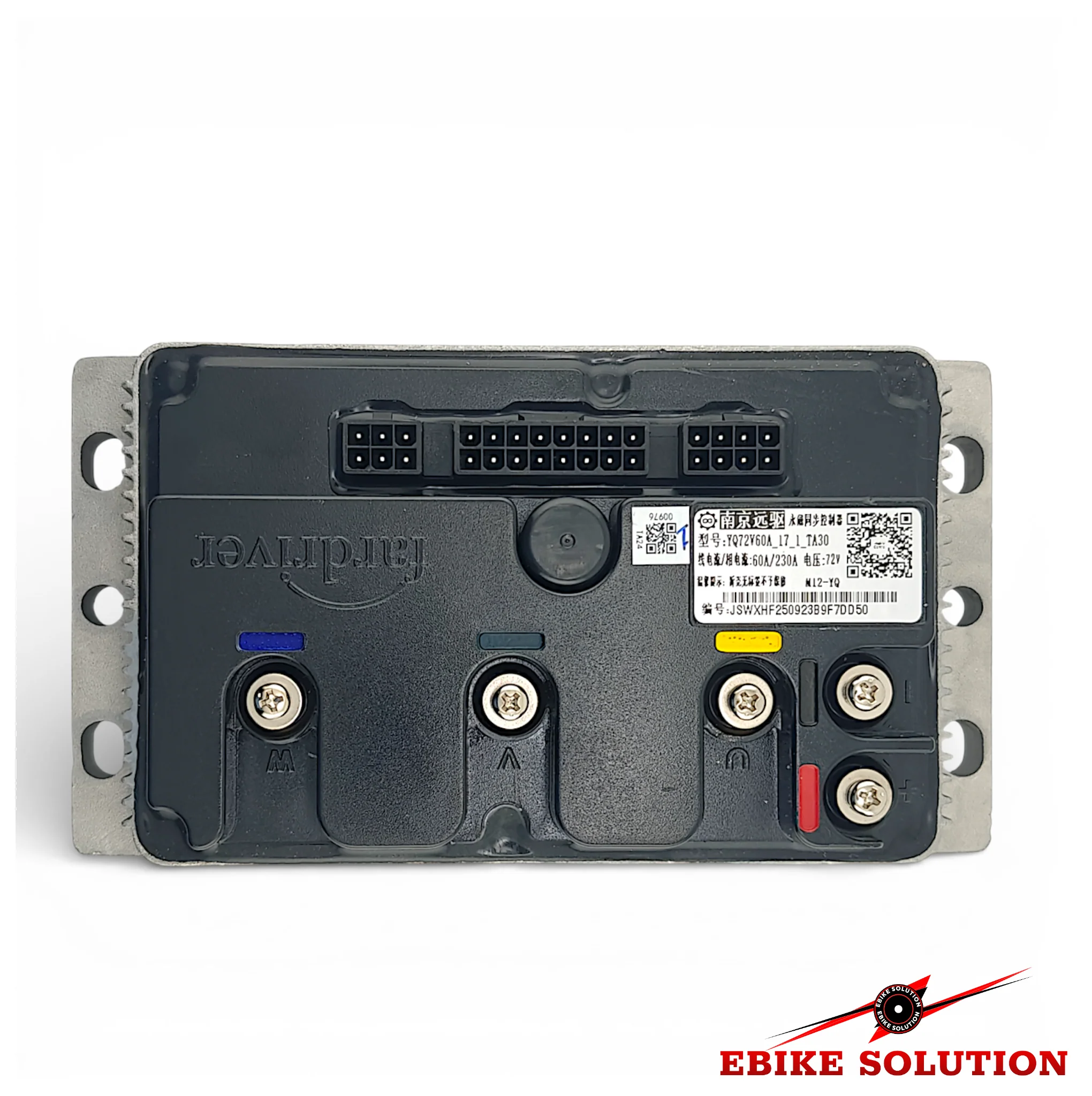

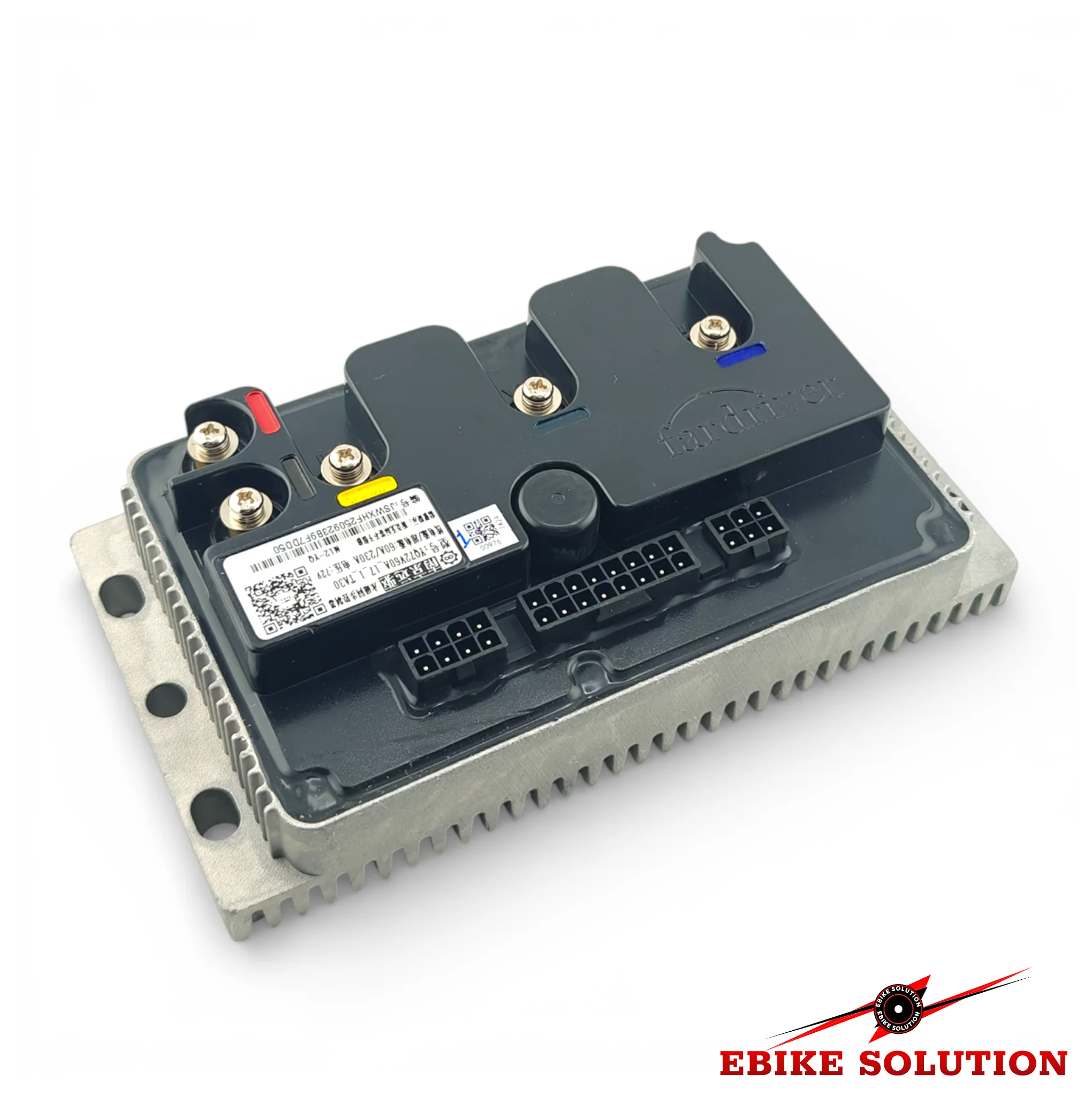

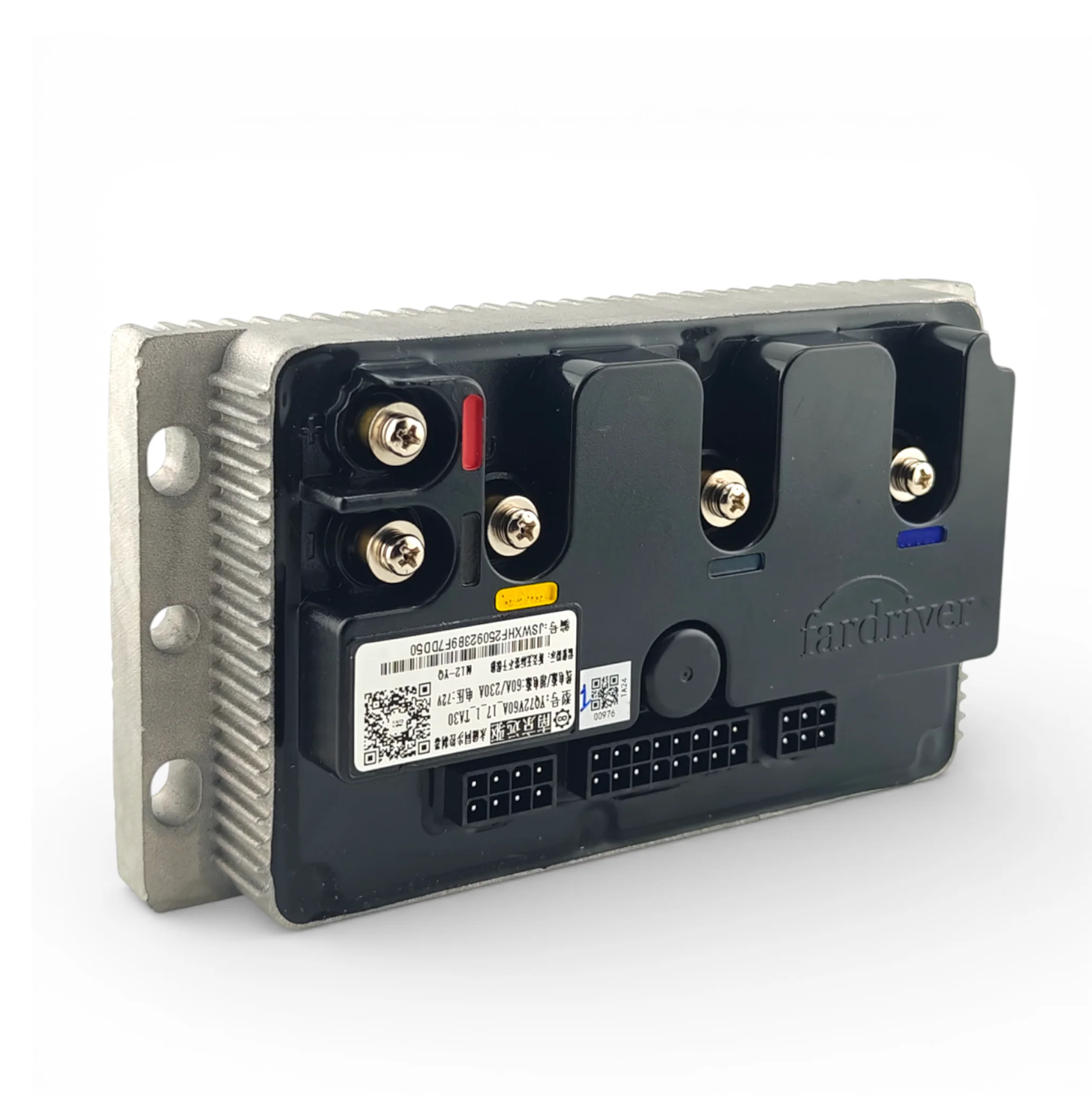

Fardriver 72V 60A/230A EV Programmable FOC BLDC Controller Motor 60a DC 4000W
Fardriver 72V 60A/230A EV Programmable FOC BLDC Controller Motor 60a DC
- Check your motor type: Is it a BLDC or PMSM Motor?
- Check the controller functions to ensure it's suitable for you.
- Check the controller size to ensure proper installation.
Key Features
- Suitable for middle and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end Vehicle.
- Uses high-quality, fully imported MOS core.

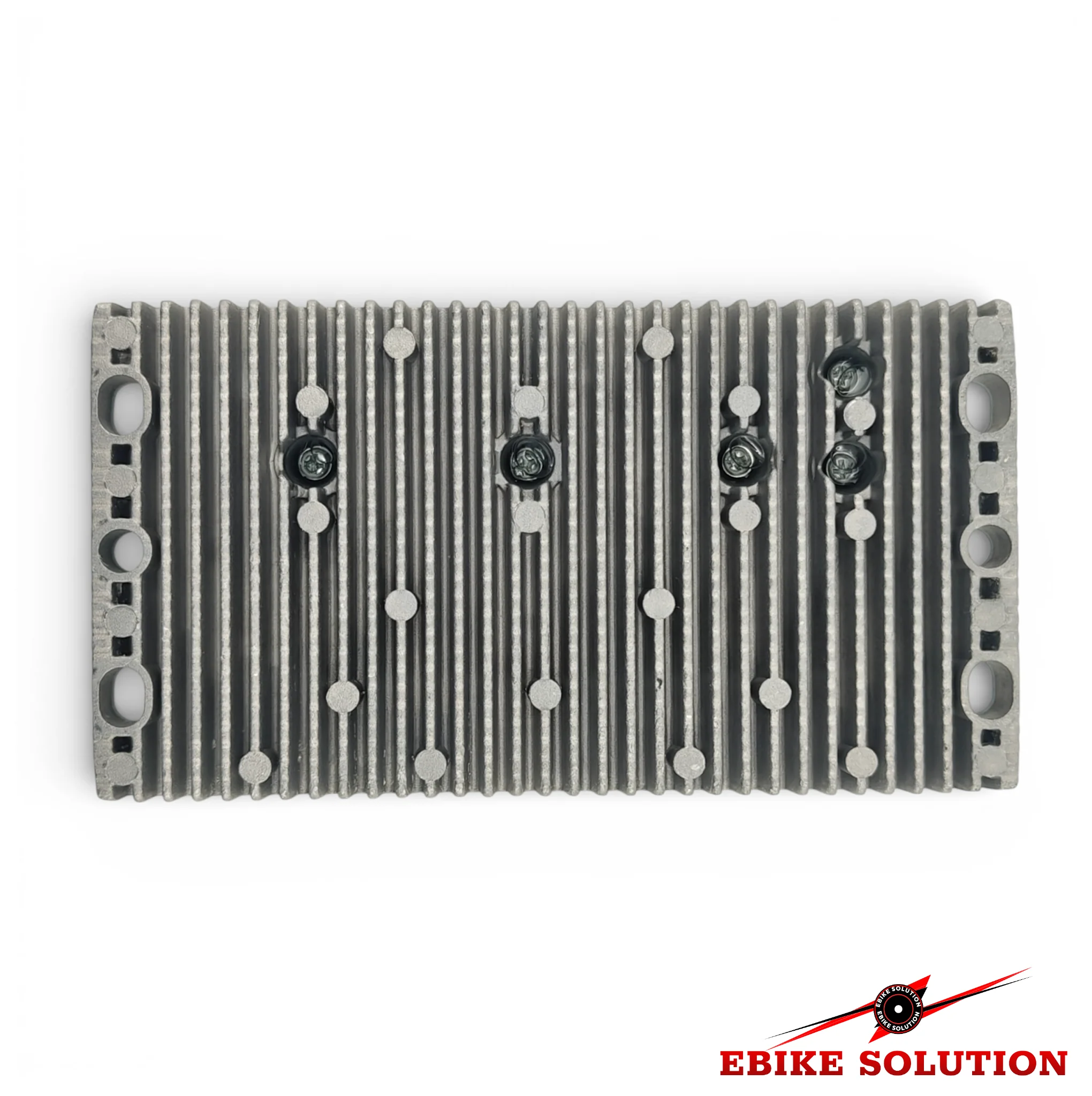

- Full metal shielding and aluminium heat dissipation structure.
- The hardware architecture and software implementation are perfectly matched and refined.
General Specifications
- Controller Type: Sine Wave FOC Controller
- Model Number:Â YQ72v60a
- Max. Bus Current:Â 60A
- Max. Phase Current:Â 230A
- Working Voltage: 48V/60V/72V, max. 88V
- Compatible Motor Power:Â 1000W-4000W

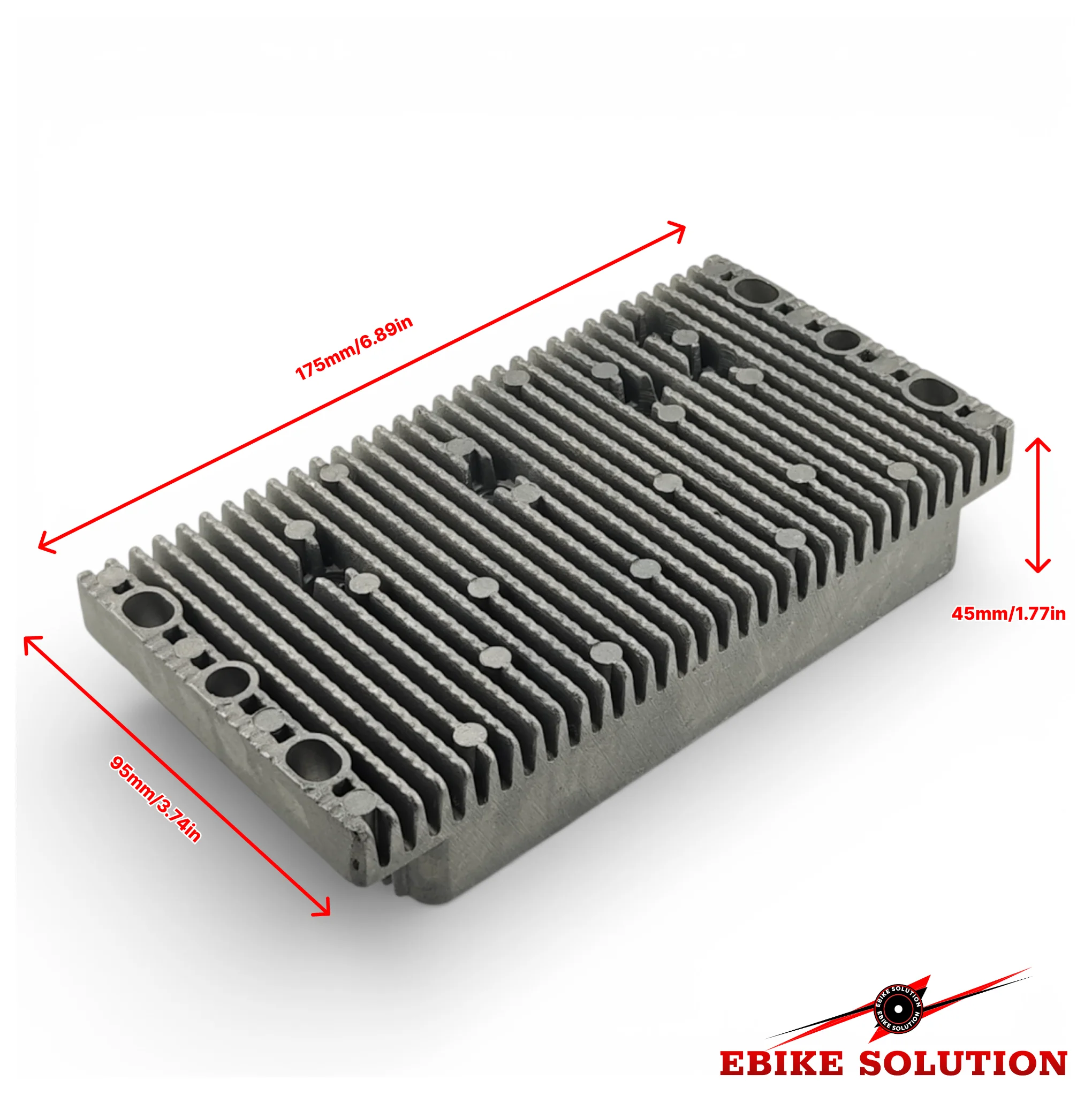

- Size:Â 175mm/6.89in*Â 95mm/3.74in*Â 45mm/1.77in
- Weight: 1KGS
Note
- Due to factory adjustments, sometimes the DC or phase current may vary slightly (either lower or higher than described), depending on the PCB board in stock.
- However, these variations do not significantly affect the controller's performance.
- If you are concerned about these differences, please consider carefully before purchasing.
Package Included
-
1 X Controller
-

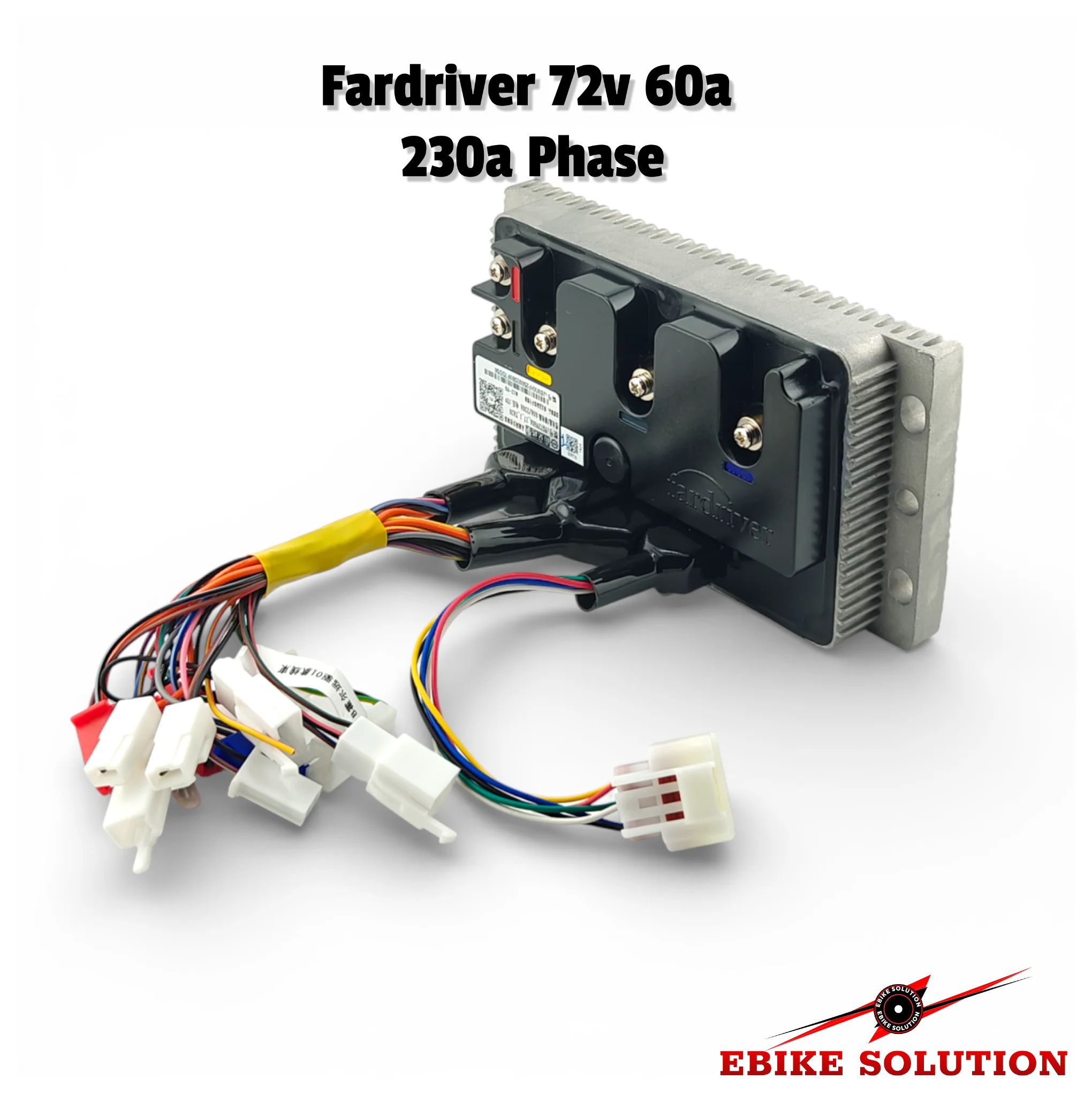

1 X Wiring harness
-
1 X Bluetooth Dongle
