Fardriver ND72850 72V 850A EV Programmable FOC Controller Electric Scooter BLDC

Fardriver 72850 72V 850A EV Programmable FOC Controller Electric Scooter Motor  BLDC Sine Wave

Order Guide

• Check your motor type: Is it a BLDC or PMSM Motor?
• Check the controller functions to ensure it's suitable for you.
• Check the controller size to ensure proper installation.

Key Features

• Suitable for middle and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
• Uses high-quality, fully imported MOS core.
• Full metal shielding and aluminium heat dissipation structure.
• The hardware architecture and software implementation are perfectly matched and refined.

General Specifications

Key Features

• The ND series Hall one-line pass-through controller is a high-end, high-power permanent magnet synchronous motor controller.
• It offers advantages of high quality, high efficiency, and intelligence.
• Suitable for vehicle applications using various Hall motors.
• Ideal for middle and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
• Uses high-quality, fully imported MOS core.
• Full metal shielding and aluminum die heat dissipation structure.
• The hardware architecture and software implementation are perfectly matched and refined.

General Specifications

• Model: ND72850
• Working Communication: Hall Sensor
• Available Rated Battery Voltage: 48V/60V/72V
• Peak Battery Voltage: 88V
• Available Motor Power: 8000W
• Default Throttle Working Voltage: 0V - 5V
• Peak DC Current: 450A
• Peak Phase Current: 850A
• MOSFETs Detail: 42 FET
• Weight: 3.5kgs

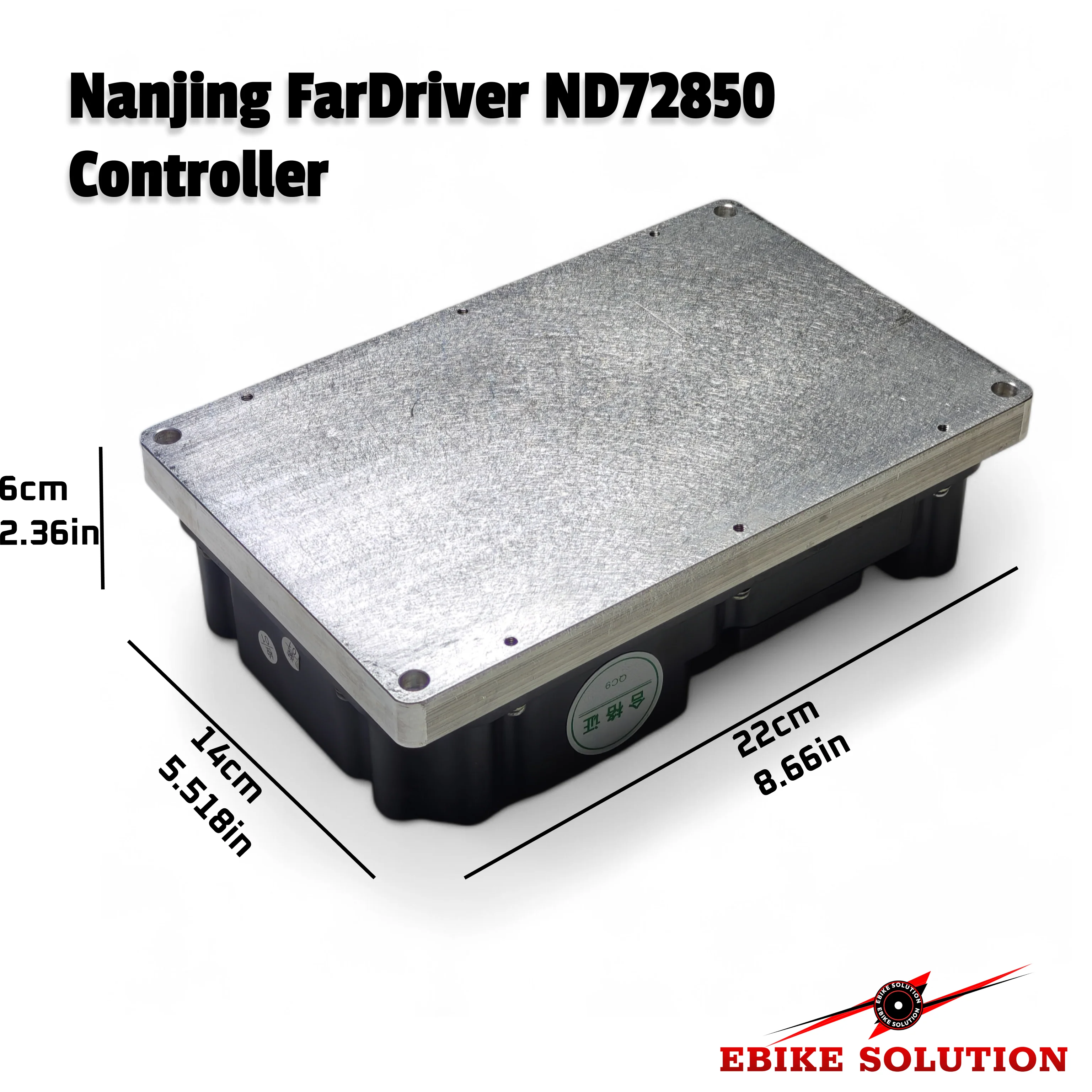

• Installing Size: 222mm * 142mm * 71mm
• Controller Design: Sine Wave BLDC
• Case Material: Aluminum
• Programmable Support: PC & Phone
• Suitable for: Electric bike, scooter, motorcycle, tricycle, kart, ATV

Note

• Due to factory adjustments, sometimes the DC or phase current may vary slightly (either lower or higher than described), depending on the PCB board in stock.
• However, these variations do not significantly affect the controller's performance.
• If you are concerned about these differences, please consider carefully before purchasing.
