MXUS 36V 48V 250W 350W 500W High Speed Brushless Gear Hub Motor
Motor Specifications
| Model | Position | Voltage (V) | Power (W) | Weight (Kg) | Reduction Ratio | Wheel Diameter (Inch) | Speed (RPM) | Magnet Poles (2P) | Fork Size (mm) | Freewheel | Brake Type | Efficiency (%) | IP Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

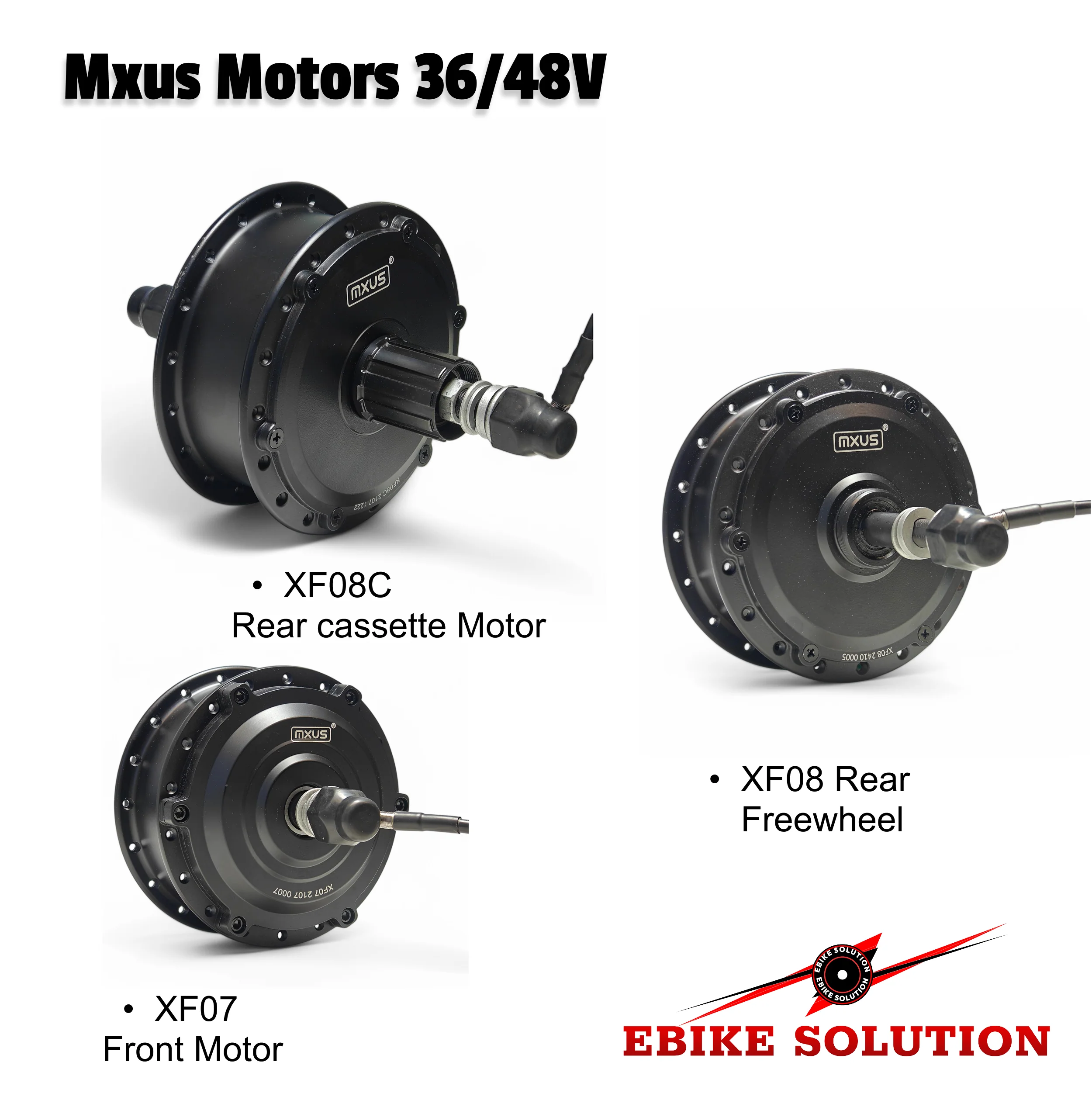

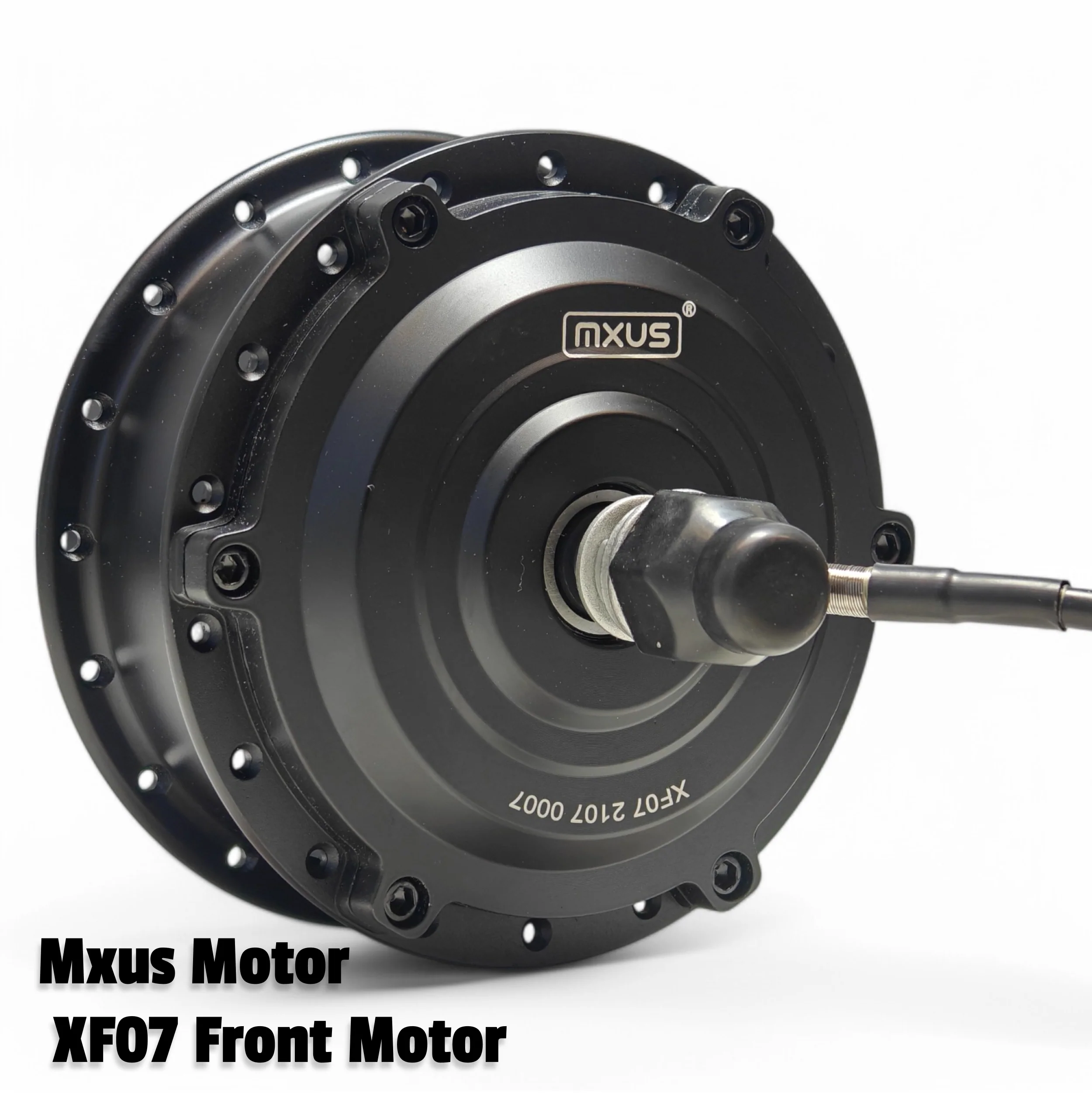

| XF07 | Front | 36 | 250 | 2.8 | 1:4.4 | 20-28 | 270 | 10 | 100 | - | V/Disk brake | ≥ 78% | IP54 |

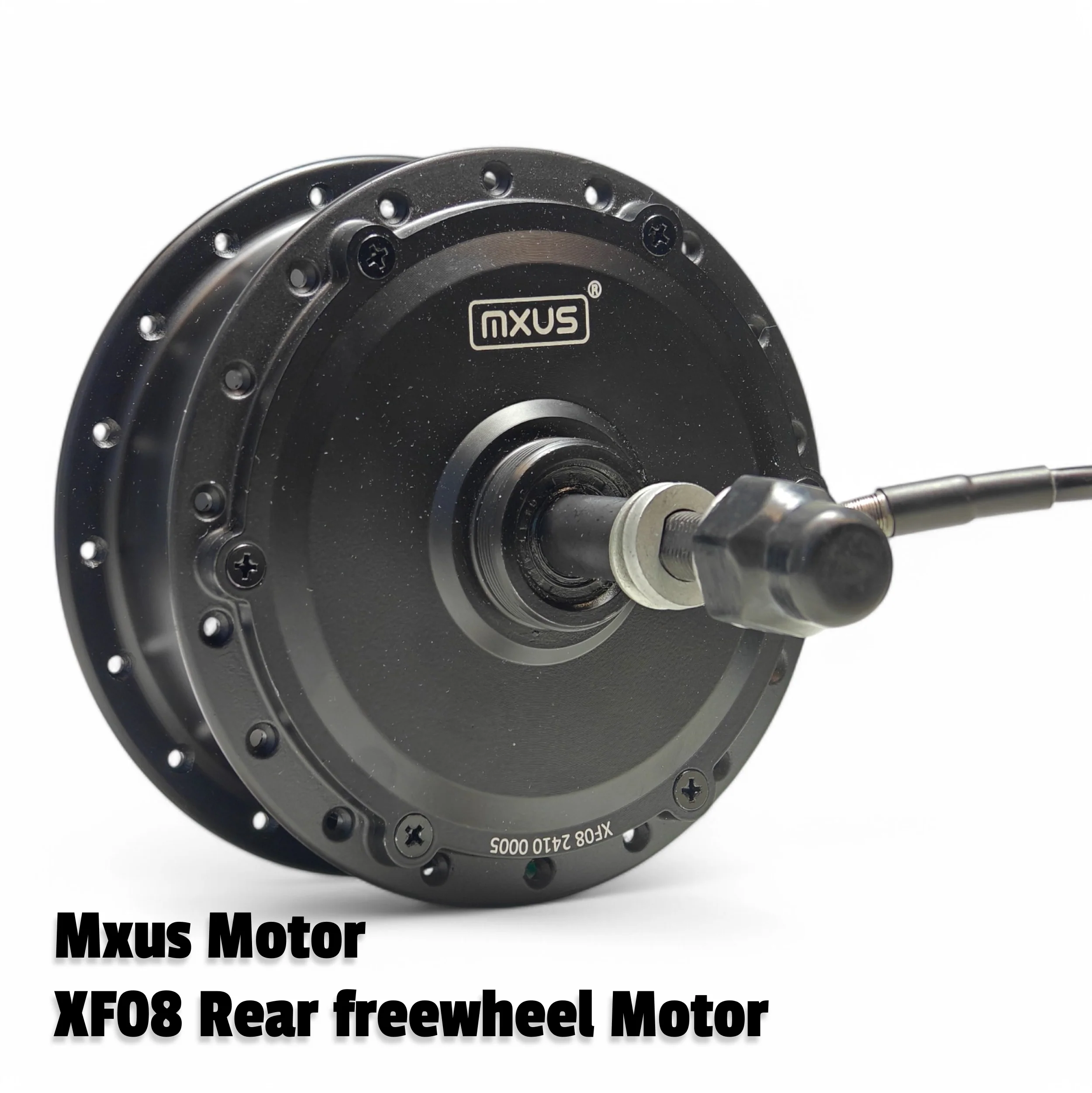

| XF08 | Rear | 36 | 250 | 2.8 | 1:4.4 | 20-28 | 270 | 10 | 136 | 6s-9s | V/Disk brake | ≥ 78% | IP54 |

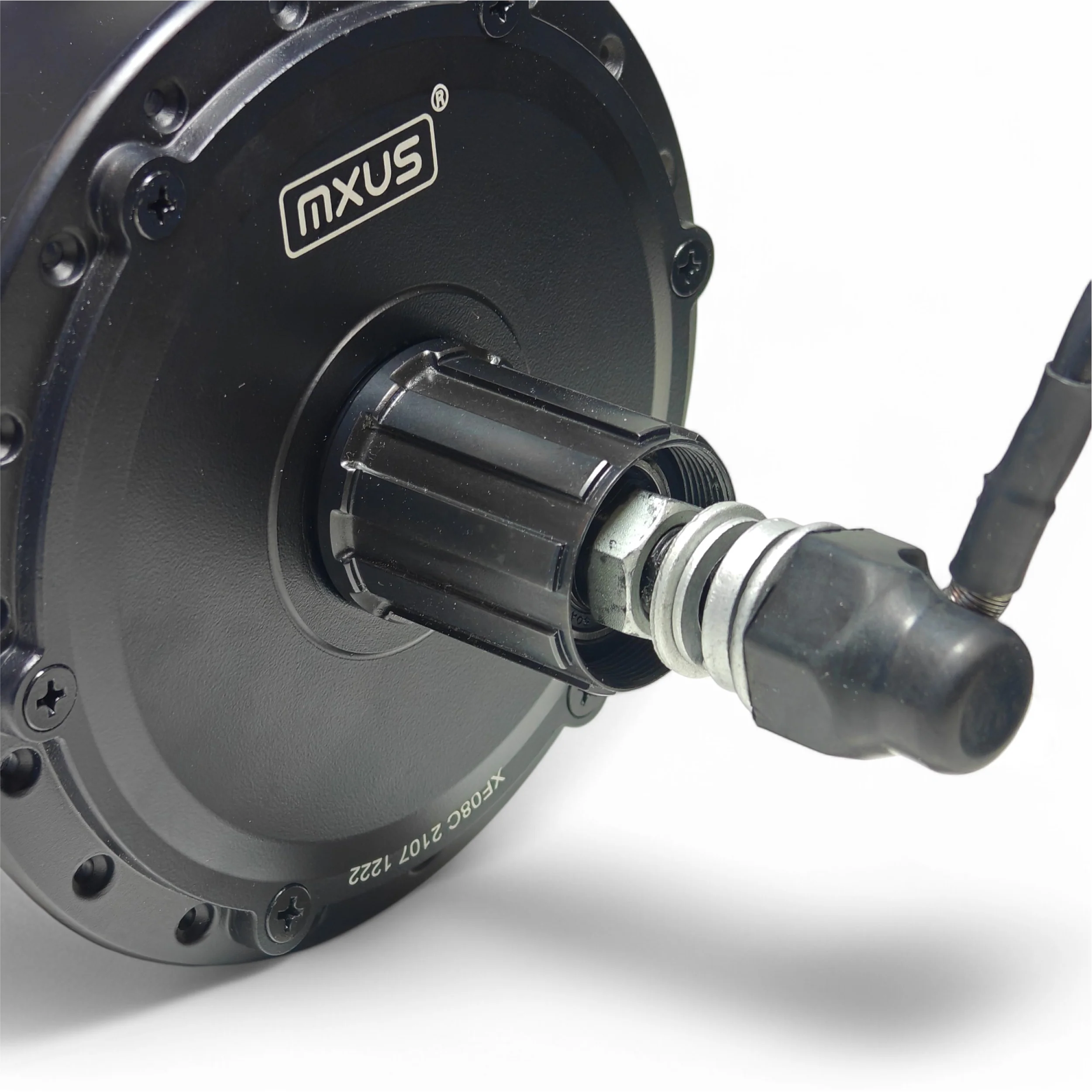

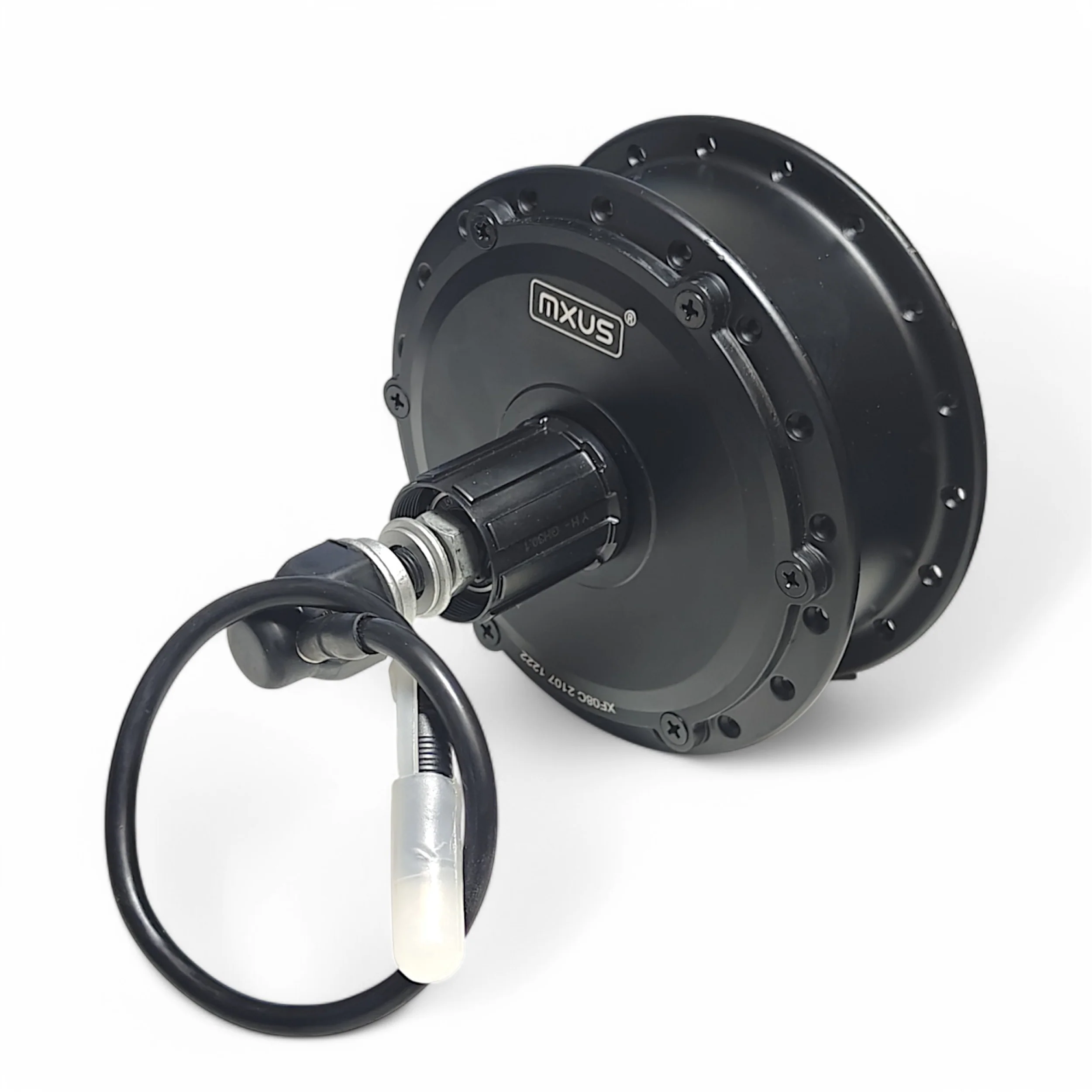

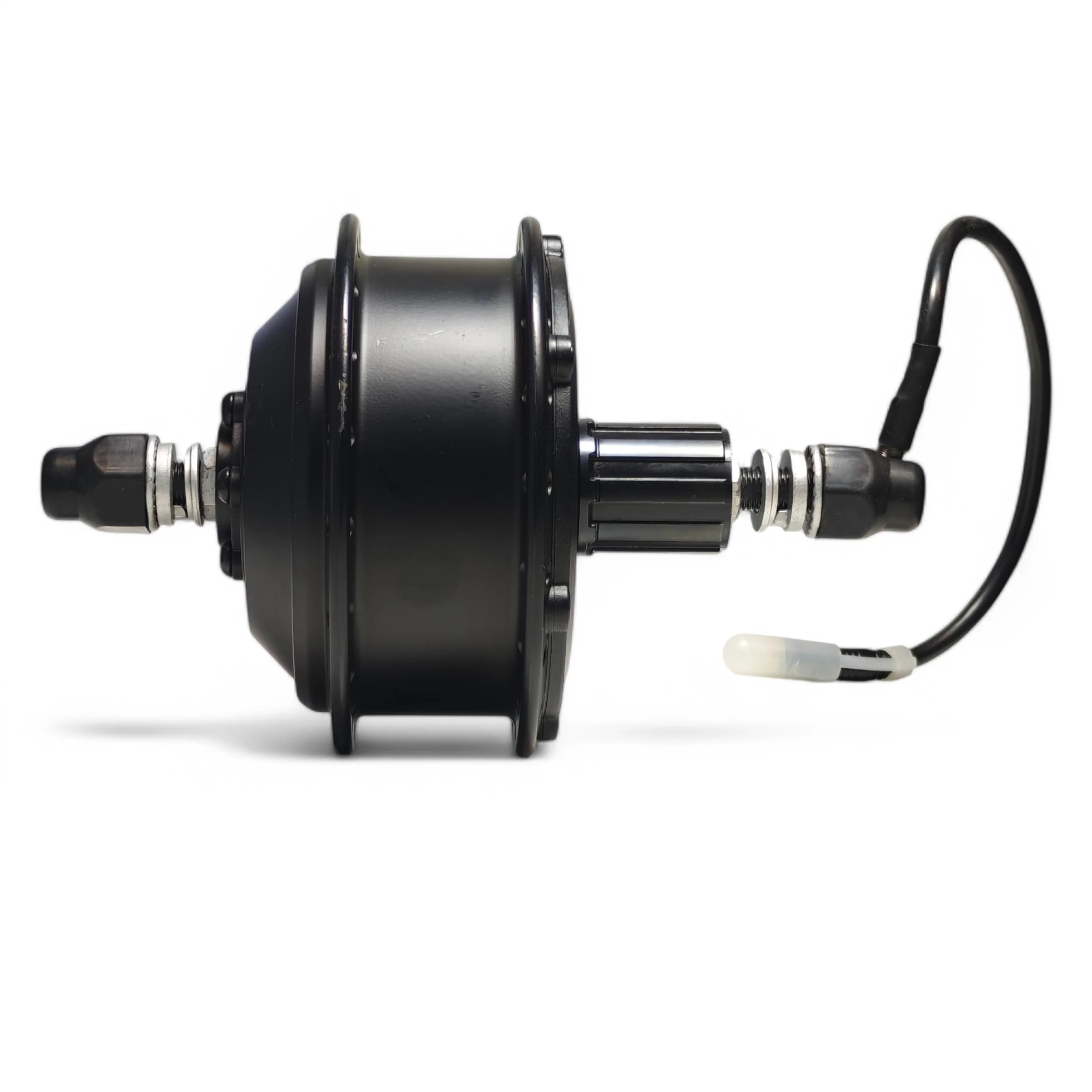

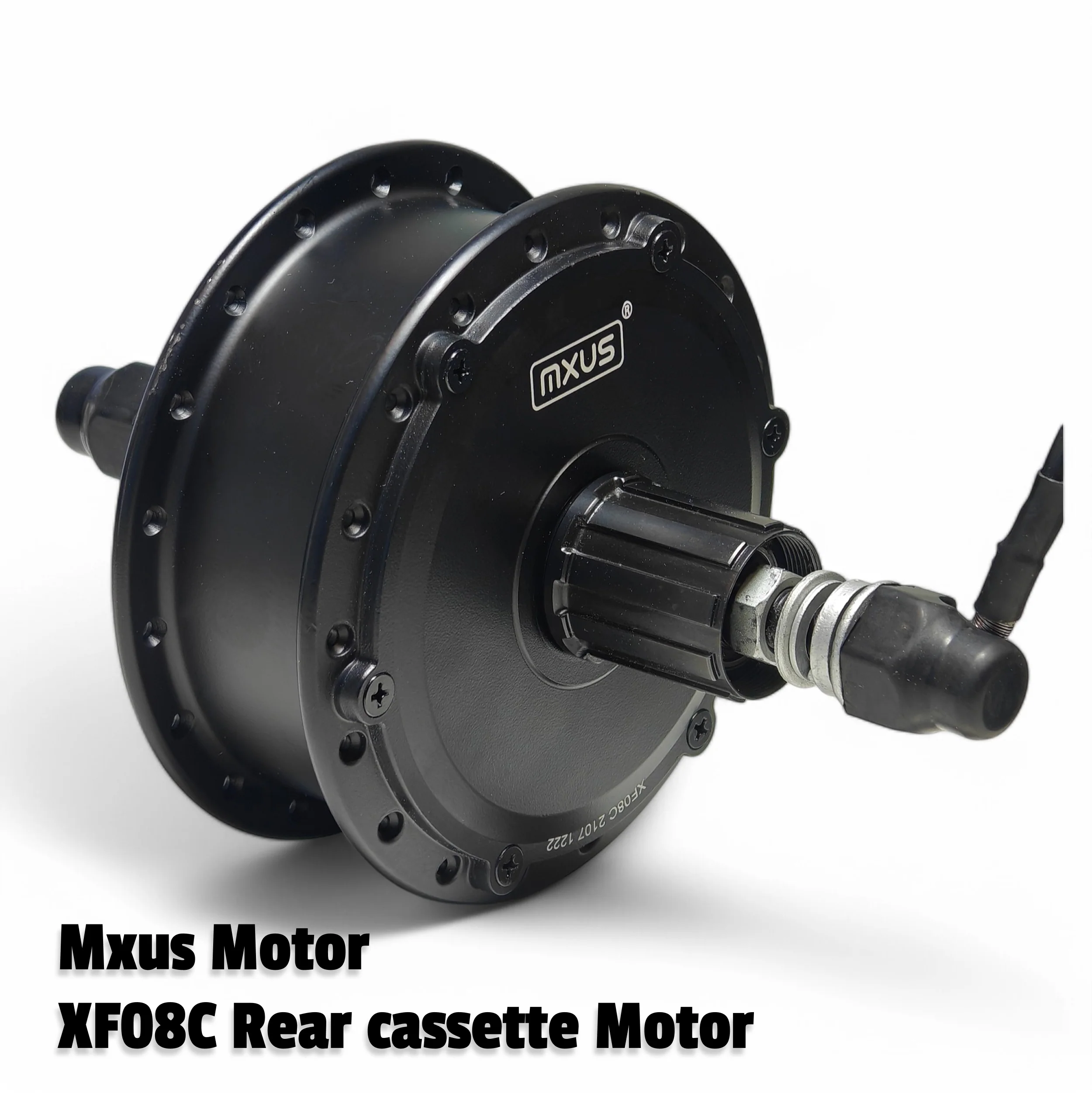

| XF08C | Rear | 36 | 250 | 3 | 1:4.4 | 20-28 | 270 | 10 | 144 | 8s-10s cassette | V/Disk brake | ≥ 78% | IP54 |
| XF15F | Front | 48 | 500 | 3.7 | 1:5 | 20-28 | 380 | 10 | 100 | - | V/Disk brake | ≥ 78% | IP54 |
| XF15R | Rear | 48/36 | 500/350 | 3.7 | 1:5 | 20-28 | 380 | 10 | 139 | 6s-9s | V/Disk brake | ≥ 78% | IP54 |
| XF15C | Rear | 48/36 | 500/350 | 3.9 | 1:5 | 20-28 | 380 | 10 | 145 | 8s-10s cassette | V/Disk brake | ≥ 78% | IP54 |
Packing List
- 1 pcs MXUS Motor

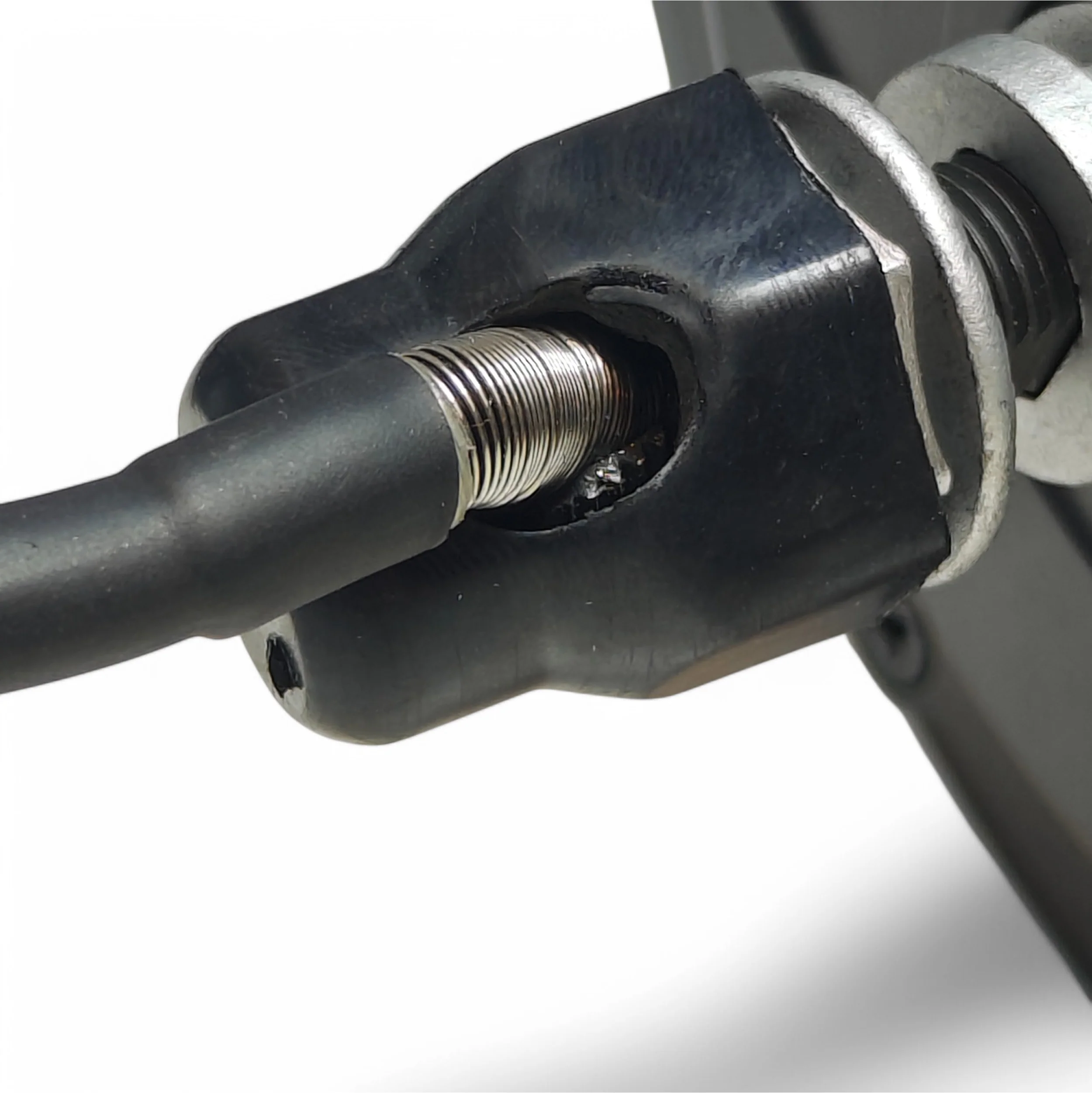

- Motor Cable:
- Front motor: 1.5M 9 PIN Waterproof cable

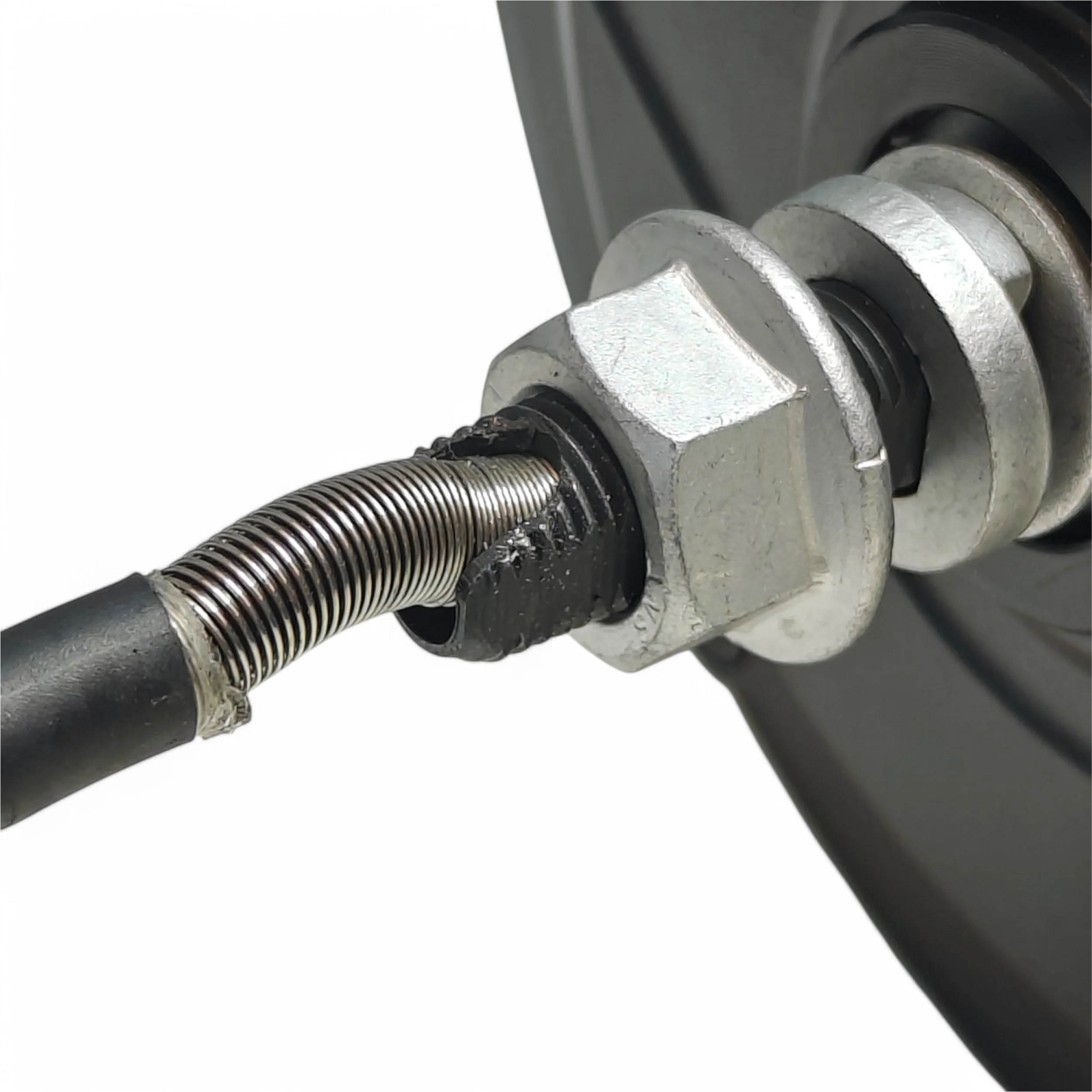

- Rear Freewheel and Rear Cassette Freewheel motor: 1M 9 PIN Waterproof cable
Model Torque (NM)
| Model | Torque (NM) |
|---|---|
| XF07 36V350W | 35 |
| XF08 36V250W | 35 |
| XF08C 36V250W | 35 |
| XF15F 48V350W | 65 |
| XF15R 48V500W | 65 |
| XF15C 48V500W | 65 |
| XF15C 36V350W | 50 |
| XF15R 36V350W | 50 |
Â
Package Includes:
- Â 1 x Motor
Shipping information: We offer free shipping on most of our items,dispatched the same day Monday to Friday before 4 PM. We can offer next day delivery on some of our items depending on availability and shipping address.
Guarantee: Offer a money-back guarantee or warranty to give the customer peace of mind when making a purchase.
Feedback:Your satisfaction and positive feedback is very important for us, if you have any problems, don't hesitate to contact us. We'll do our best to serve you.
Original: $217.89
-65%$217.89
$76.26Product Information
