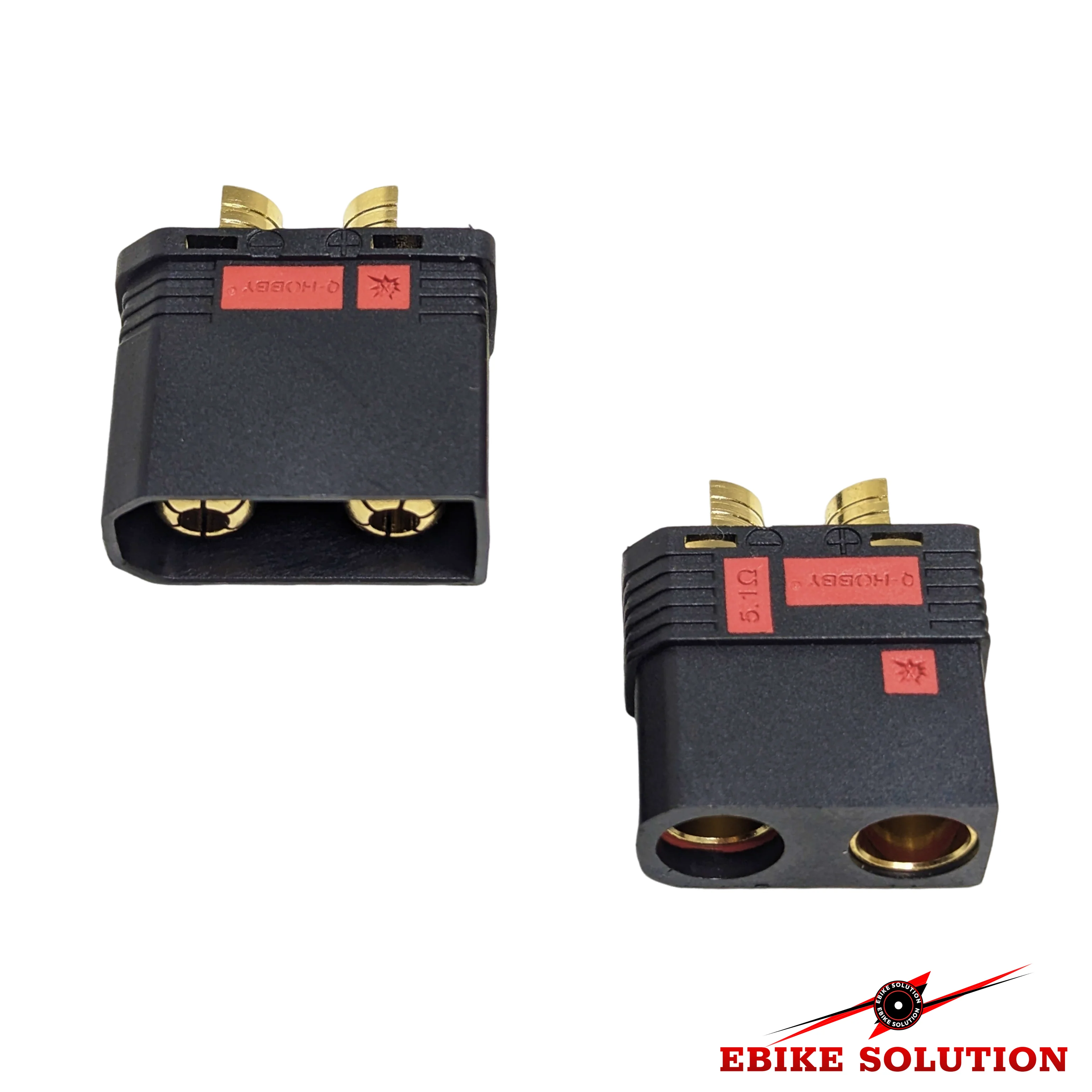

QS8 Anti Spark Battery Male Female Connector 120A QS8-S Plug Lipo Battery DIY
QS8 Anti Spark Battery Male Female Connector 120A QS8-S Plug Lipo Battery DIY
Features:
- Anti-Spark Technology Increases Lifespan of Connector
- 110A Constant/300A Peak Current Rating
- 8.0mm Gold Plated Brass Bullet
- Great for all High Voltage Applications
- Nylon/Fiber Composite Housing
Specifications:
- Connector Diameter: 8.00mm
- Metal Material: Gold Plated Brass
- Plastic Material: Fiber Nylon Comp
- Flame retardant rating: UL94 V0
- Temperature Range: 200C Max
- Rated Voltage: 600V DC
- Continuous Current: 120A
- Peak Current: 300A+
- Weight: 41g (Male+Female Set)
- Total Length: Approx 40mm with end Cup
- Width: 29.5mm
- Max Wire Gauge: 6awg
Package Included:Ā
- 1 Pair QS8-S Connectors
Shipping information: We offer free shipping on most of our items,dispatched same day Monday to Friday before 3PM.We can offer next day delivery on some of our items depending on availability and shipping address.
Guarantee: Offer a money-back guarantee or warranty to give the customer peace of mind when making a purchase.
Feedback: Your satisfaction and positive feedback is very important for us, if you have any problems, don't hesitate to contact us. We'll do our best to serve you.
