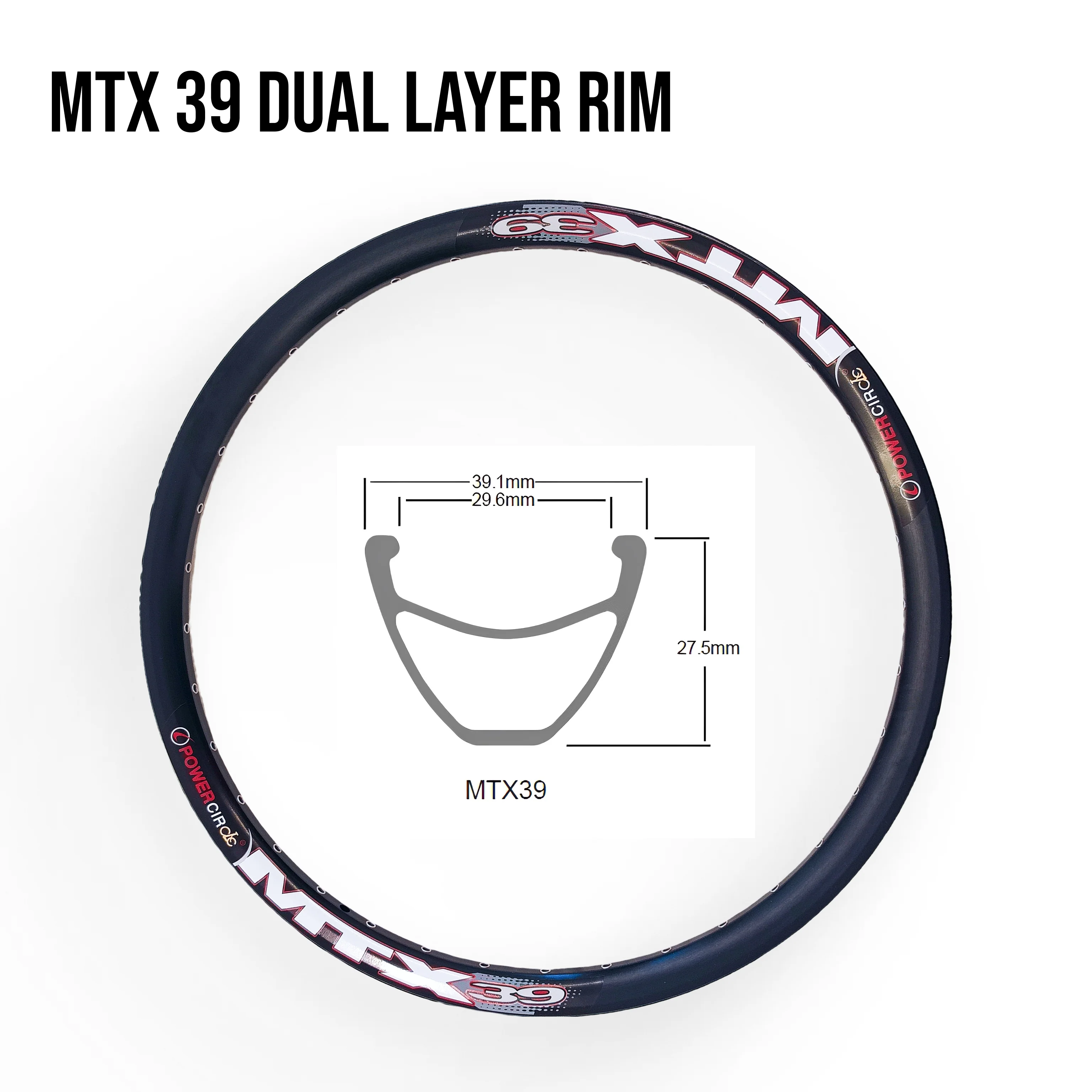

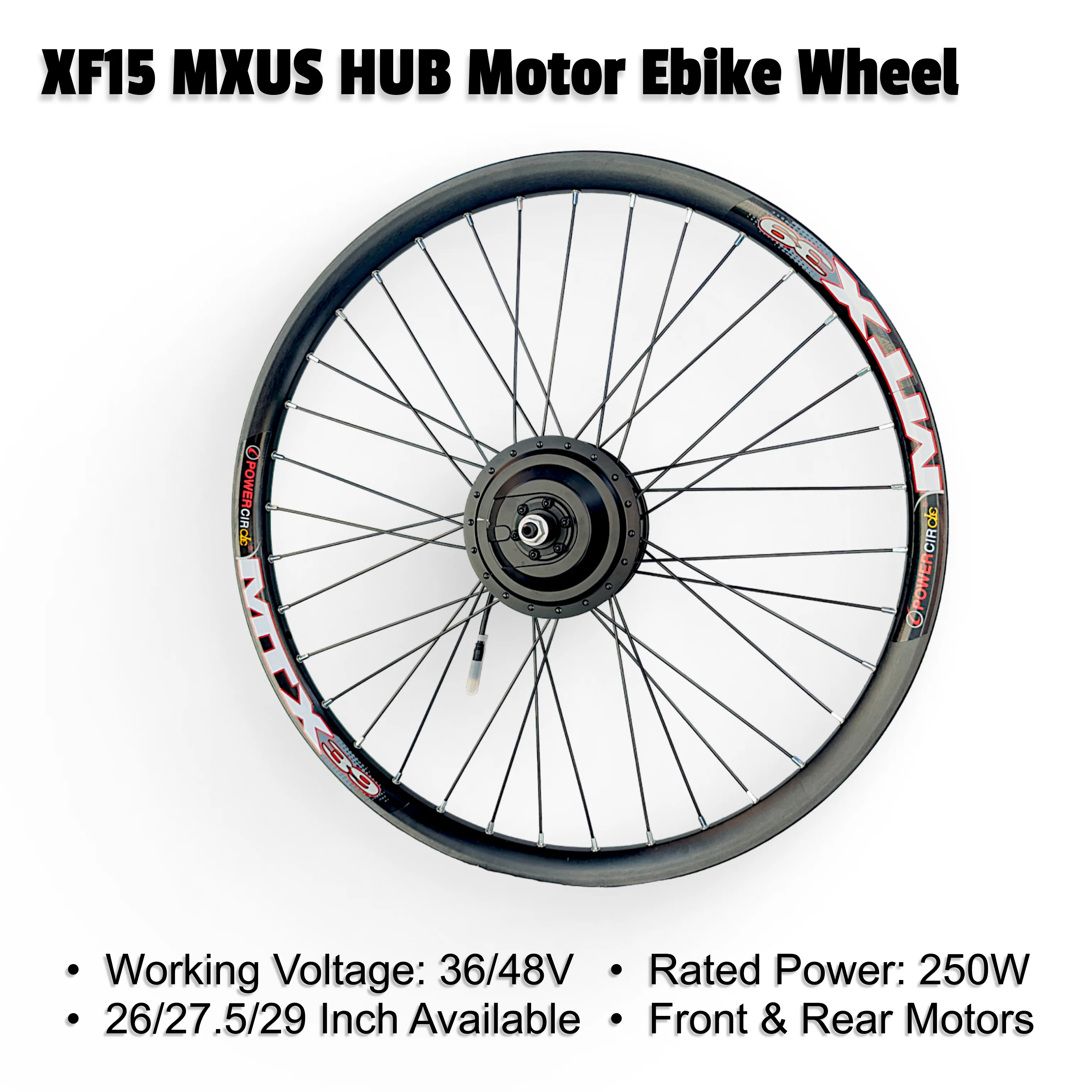

XF15 MXUS Ebike Hub Motor MTX39 Rim Front & Rear Freewheel / Cassette

MXUS 36V 250W 48V 250W Ebike Motor Rear Hub Freewheel Cassette Geared Motor

• Dropout: For 100-145 mm
• Rated Voltage: 36/48
• Rated Power: 250W
• Motor Type: Geared
• Color: Matte Black body
• Axle Length: 200mm
• Hall Sensor Quantity: 3pcs
• Axle Diameter: 12mm
• Brake: Supports 6-hole 160mm disc brake
• Spokes: 12G steel spokes, 36pcs

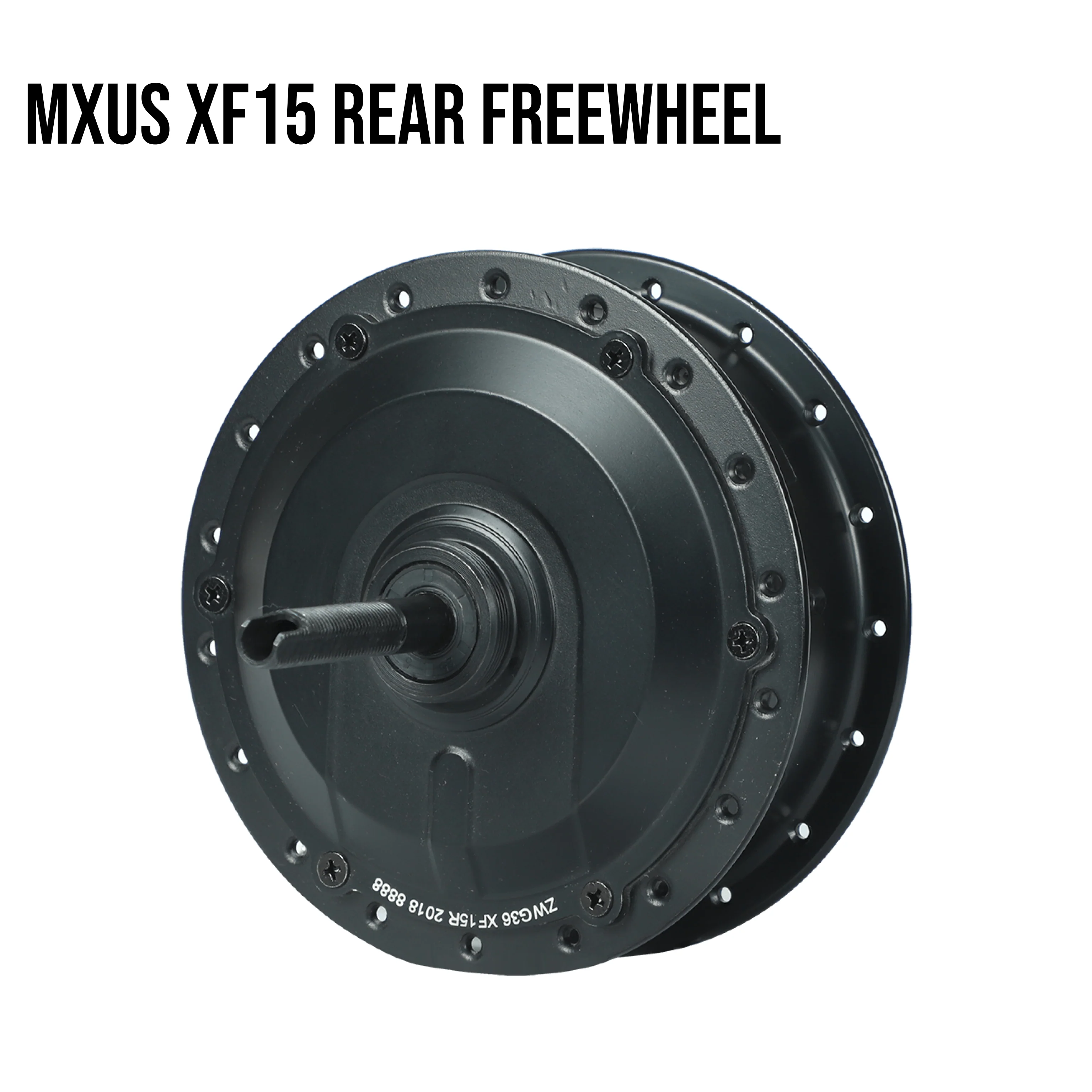

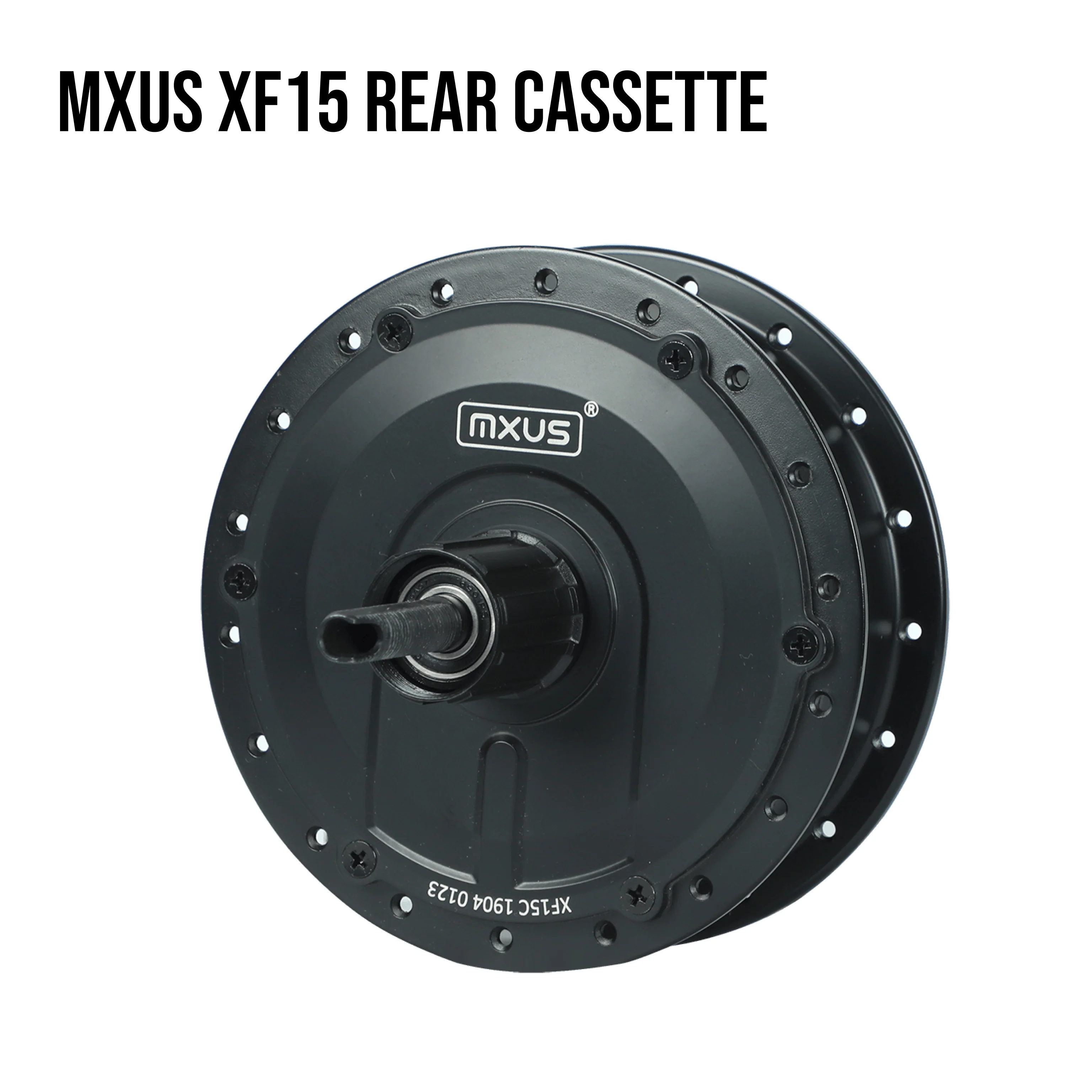

Specifications: XF15 Freewheel/Cassette

Model number	XF-15
Position	Rear
Construction	Gear
Rated voltage(V)	24/36/48
Rated Power(W)	250-500
Weight(kg)	3.7
Reduction Ratio	1:5
Wheel Diameter(inch)	16-28
Rated speed(km/h)	25-40
Magnet Poles(2P)	10
Dropout(mm)	139/145
Brake Type	Disk brake
Operating Temperature ©	-20---45
Efficiency(%)	≧78%
Colour	Black
Cabling Route	Shaft center right
Freewheel/Cassette	6-9s
Noise Grade(dB)	≤55
IP Grade	IP54
Salt Spary Test Standard(h)	24/96
Magnetic Steel(H)	18/20/23

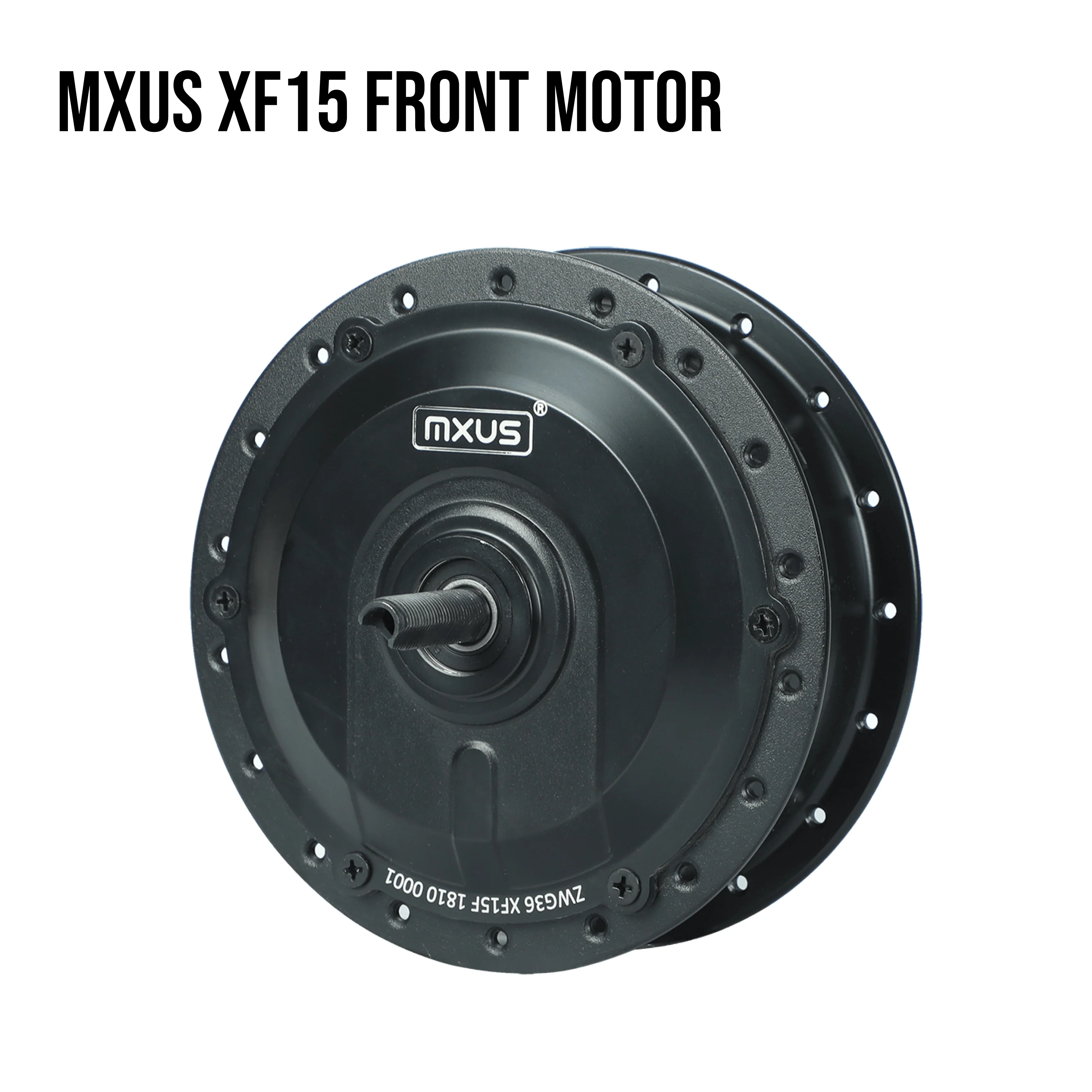

Specifications: XF15 Front Motor 100 MM Dropouts

Model number	XF-15
Construction	Gear
Rated votage(V)	24/36/48
Rated Power(W)	250-500
Weight(kg)	3.7
Reduction Ratio	1:5
Wheel Diameter(inch)	16-28
Rated speed(km/h)	25-40
Magnet Poles(2P)	10
Dropout(mm)	100
Brake Type	Disk brake
Operating Temperature ©	-20---45
Efficiency(%)	≧78%
Color	Black/Silver
Cabling Route	Shaft center right
Noise Grade(dB)	≤55
IP Grade	IP54
Salt Spary Test Standard(h)	24/96
Magnetic Steel(H)	18/20/23





Package Includes:

• 1 X MXUS HUB Motor (as per chosen option)
