10Pairs XT150 Banana Bullet Adapter Male Female For FPV Racing RC LiPo Battery
10 Pairs XT150 6mm Banana Bullet Connector Set (Male/Female) for RC LiPo Battery & FPV Racing
Upgrade your RC power systems with this premium set of XT150 6mm Bullet Connectors. Built specifically for high-drain applications like FPV racing drones, RC cars, helicopters, and large LiPo batteries, these heavy-duty adapters deliver a secure, incredibly low-resistance connection to ensure maximum power transfer.
Key Features
- High-Amp Handling: Safely rated for a continuous 60A current, making them perfect for power-hungry RC models.
- Maximum Conductivity: Engineered with gold-plated brass to minimize resistance and prevent corrosion over time.
- Durable Insulation: Includes tough PA (Polyamide) plastic housings in red and black to protect against shorts and ensure correct polarity.
- Large Wire Capacity: Ideally suited for thick, heavy-duty 8AWG silicone cables.

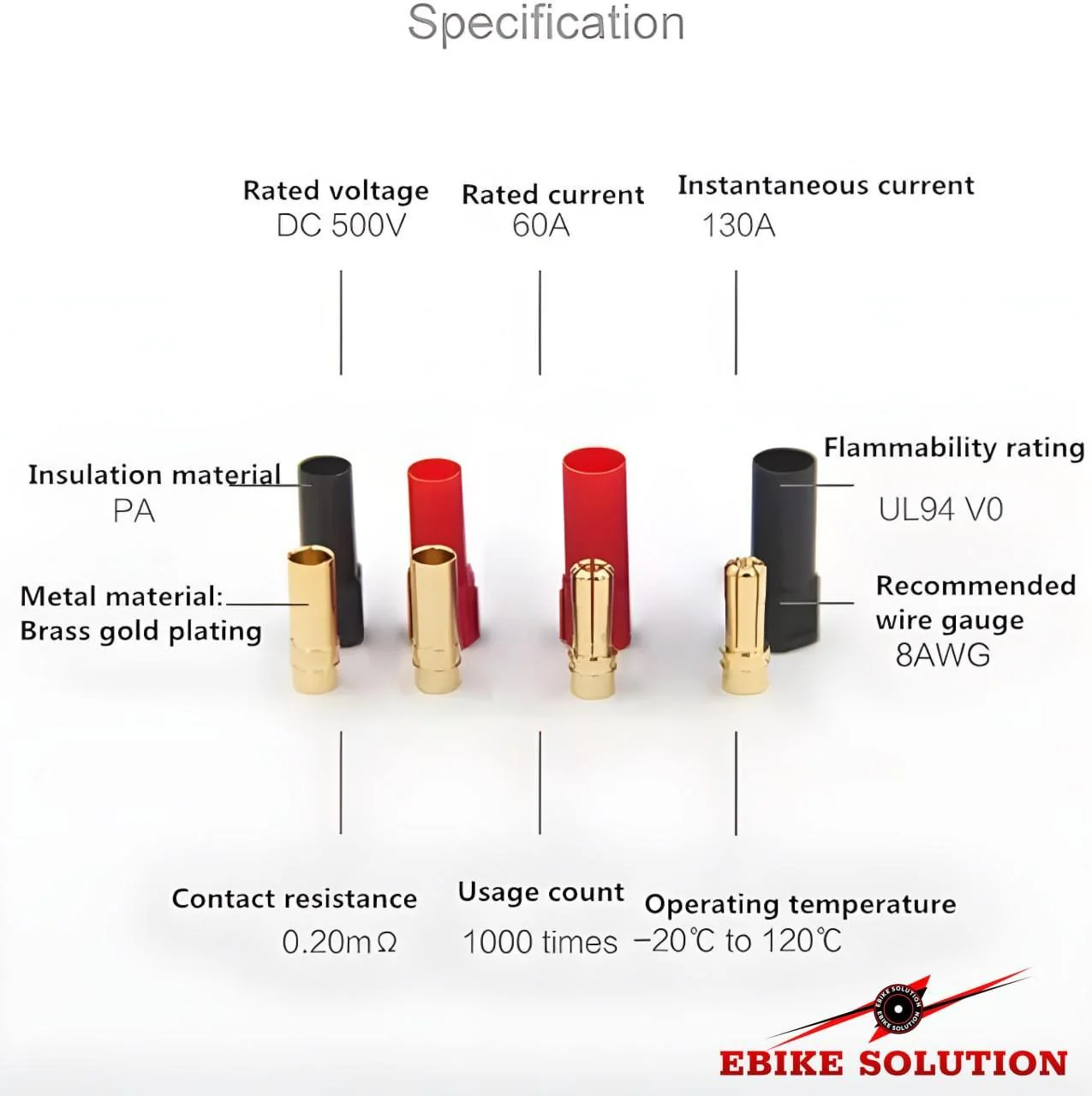

Technical Specifications

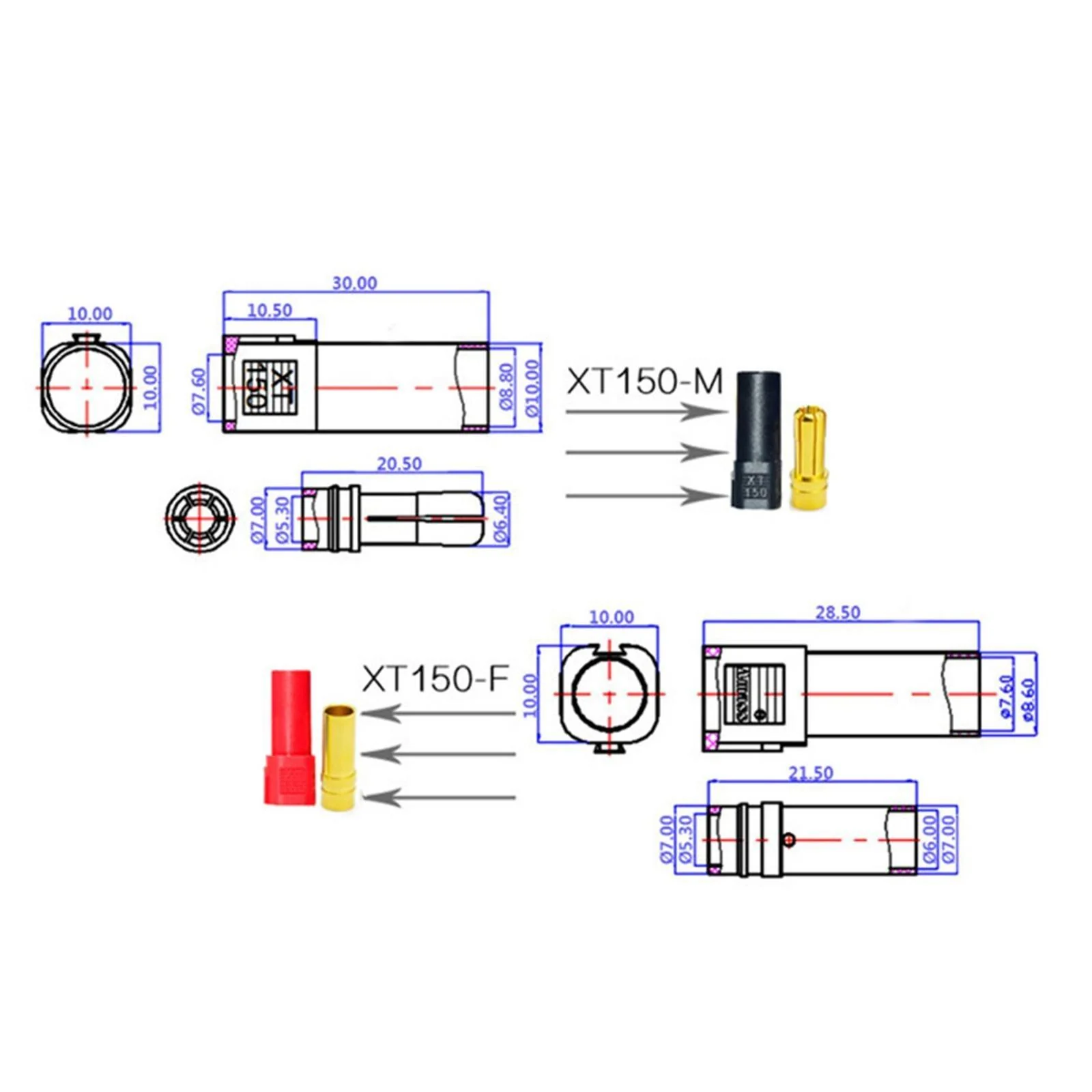

| Connector Type | XT150 (6mm Diameter) |
| Metal Material | Gold-Plated Brass |
| Housing Material | PA Plastic |
| Rated Current | 60A |
| Rated Voltage | DC 500V |
| Contact Resistance | 0.20mĪ© |
| Recommended Wire | 8AWG |

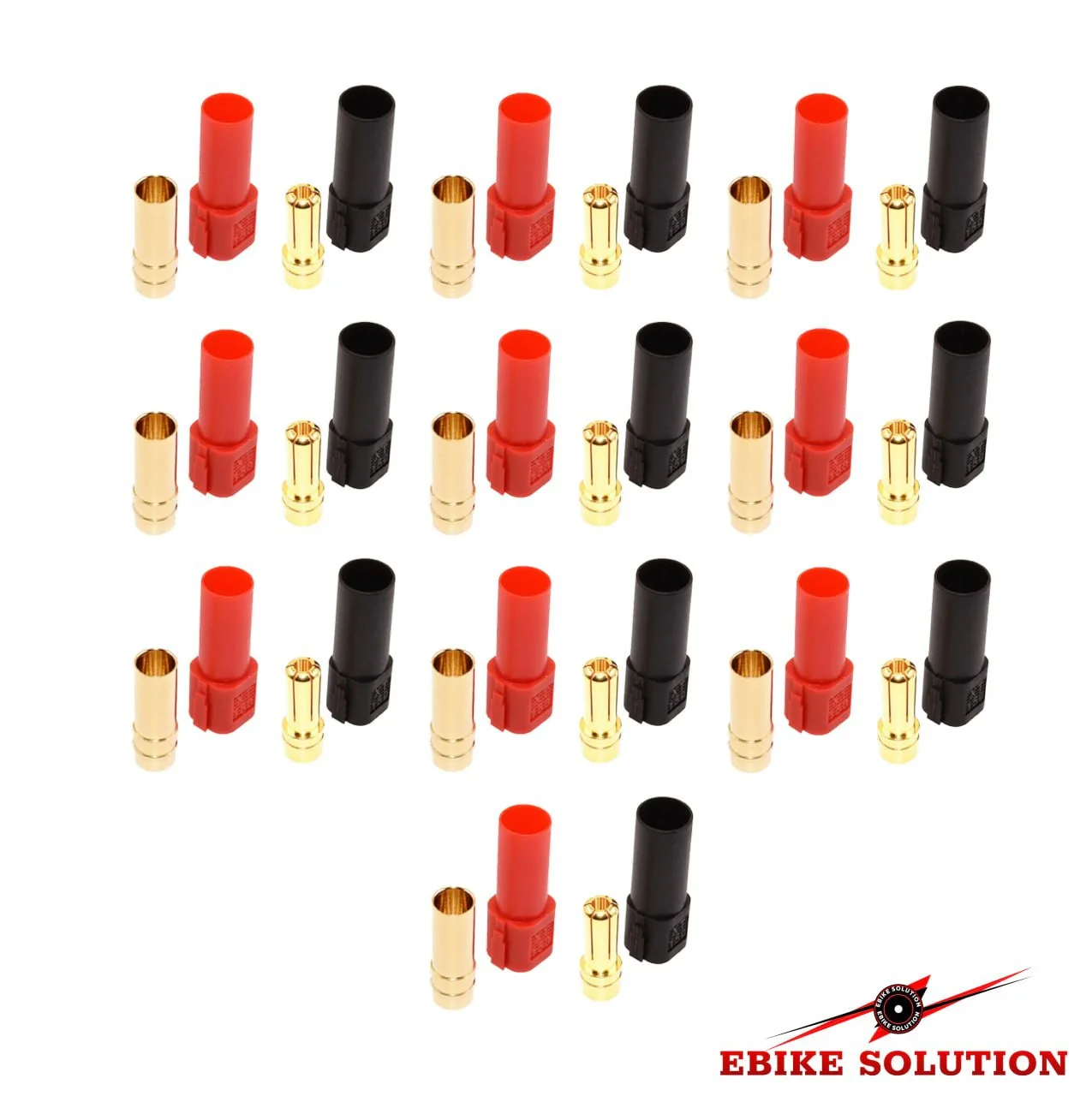

Package Contents
You will receive all the components needed to make 8 complete connection pairs:
- 10 x XT150 Male Metal Connectors
- 10 x XT150 Female Metal Connectors
- 20 x Plastic Housing Cases (Red & Black)

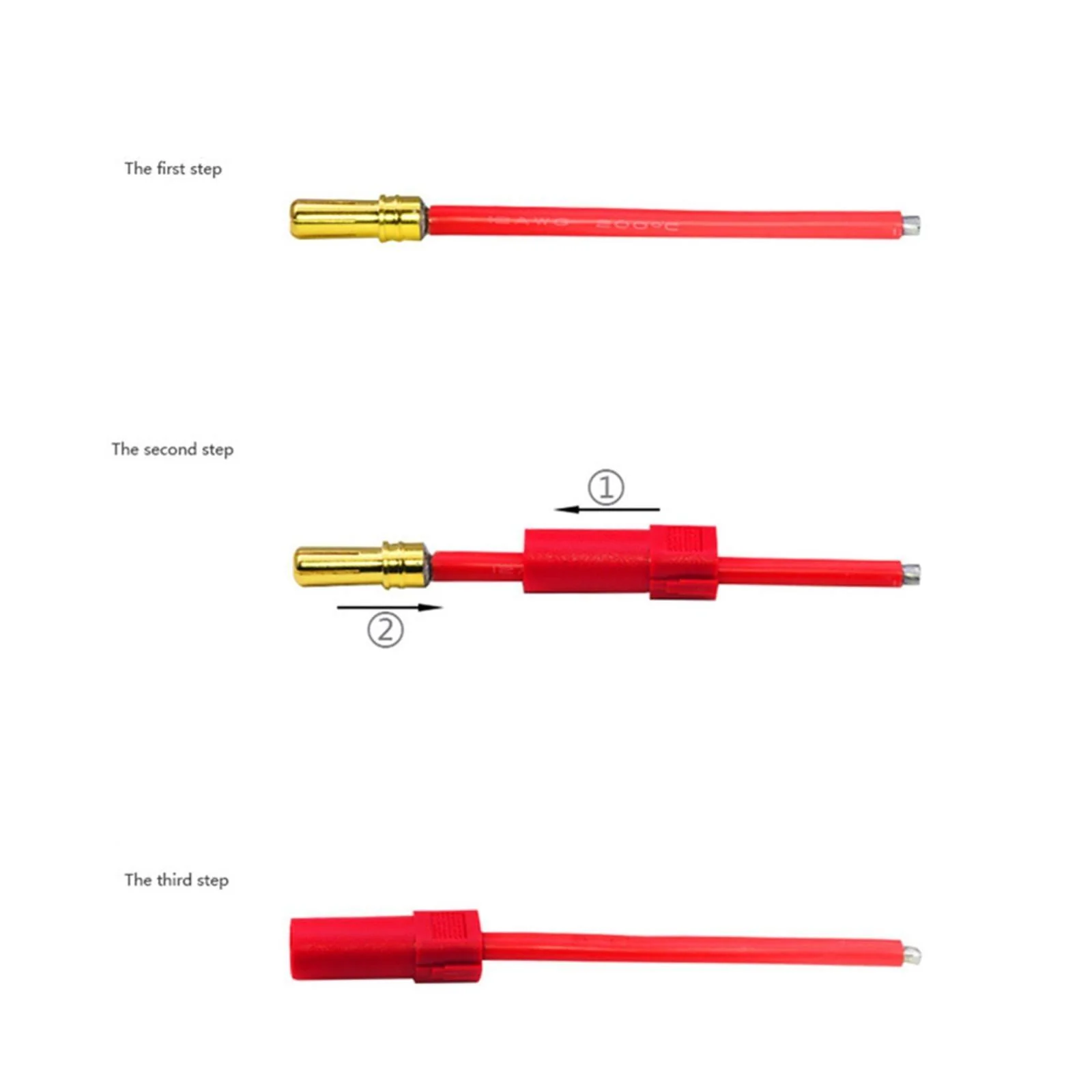

Pro-Tip for Buyers: Soldering is required to attach these connectors to your wires. Remember to thread the plastic housings onto your cables before soldering the metal bullet connectors!
Original: $21.79
-65%$21.79
$7.63Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
10 Pairs XT150 6mm Banana Bullet Connector Set (Male/Female) for RC LiPo Battery & FPV Racing
Upgrade your RC power systems with this premium set of XT150 6mm Bullet Connectors. Built specifically for high-drain applications like FPV racing drones, RC cars, helicopters, and large LiPo batteries, these heavy-duty adapters deliver a secure, incredibly low-resistance connection to ensure maximum power transfer.
Key Features
- High-Amp Handling: Safely rated for a continuous 60A current, making them perfect for power-hungry RC models.
- Maximum Conductivity: Engineered with gold-plated brass to minimize resistance and prevent corrosion over time.
- Durable Insulation: Includes tough PA (Polyamide) plastic housings in red and black to protect against shorts and ensure correct polarity.
- Large Wire Capacity: Ideally suited for thick, heavy-duty 8AWG silicone cables.
Technical Specifications
| Connector Type | XT150 (6mm Diameter) |
| Metal Material | Gold-Plated Brass |
| Housing Material | PA Plastic |
| Rated Current | 60A |
| Rated Voltage | DC 500V |
| Contact Resistance | 0.20mĪ© |
| Recommended Wire | 8AWG |
Package Contents
You will receive all the components needed to make 8 complete connection pairs:
- 10 x XT150 Male Metal Connectors
- 10 x XT150 Female Metal Connectors
- 20 x Plastic Housing Cases (Red & Black)
Pro-Tip for Buyers: Soldering is required to attach these connectors to your wires. Remember to thread the plastic housings onto your cables before soldering the metal bullet connectors!
